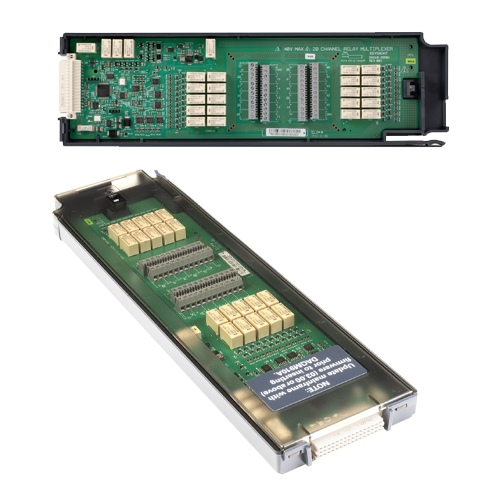

The Keysight DAQM910A module data acquisition system is a low-voltage 20-channel multiplexer module. It combines dense, multifunction switching with 80-channel-per-second scan rates to address a broad spectrum of low-voltage data acquisition applications. You can mix two- and four-wire channels on the same module. Additional features include the following:

– two- and four-wire scanning

– maximum 40 Vpk circuit protection and switching

– automatic voltage safety monitoring

– built-in thermocouple reference junction

– SCPI compatible with DAQM901A module (for voltage and temperature measurement applications)

The standard product includes the following:

– 1 DAQM910A multiplexer module

– 1 functional test certificate

Please Note: Firmware version A.03 or above is required on DAQ970A and DAQ973A for compatibility with the DAQM910A.

Low-voltage circuit protection and switching capability of up to 40 Vpk with built-in thermocouple reference junction
