Passive Probes with Never Before Seen Performance

With a small probe head, rugged and replaceable tips, automatic probe identification and attenuation, high voltage ranges and high input impedances with low capacitance – this family of probes is truly the best of passive probes and active probes in one.
PP0001A provides a never-before-seen combination of high bandwidth and higher input voltages. PP0002A is the only 800 MHz passive probe to provide more than 1 kV of input voltage. PP0003A is our first ever MMCX compatible probe. All three are sold with a variety of accessories, an adapter for use with AutoProbe I, and optional accessory kits to round out your test setup.

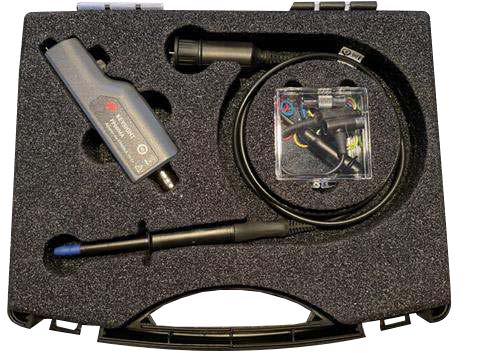

Keysight Hi-Z+ Passive Probing System PP0001A, PP0002A, PP0003A

Model       Bandwidth     Input voltage    Input impedance  Tip type
PP0001A   1 GHz            300 V CAT II      10 MΩ || 4.0 pF      5 mm tip
PP0002A   800 MHz        1200 V CAT II    40 MΩ || 2.0 pF      5 mm tip
PP0003A   1 GHz            30 V CAT II        10 MΩ || 4.0 pF      MMCX Connector

Hi-Z+ Passive Probing System PP0001A, PP0002A, PP0003A Data Sheet
