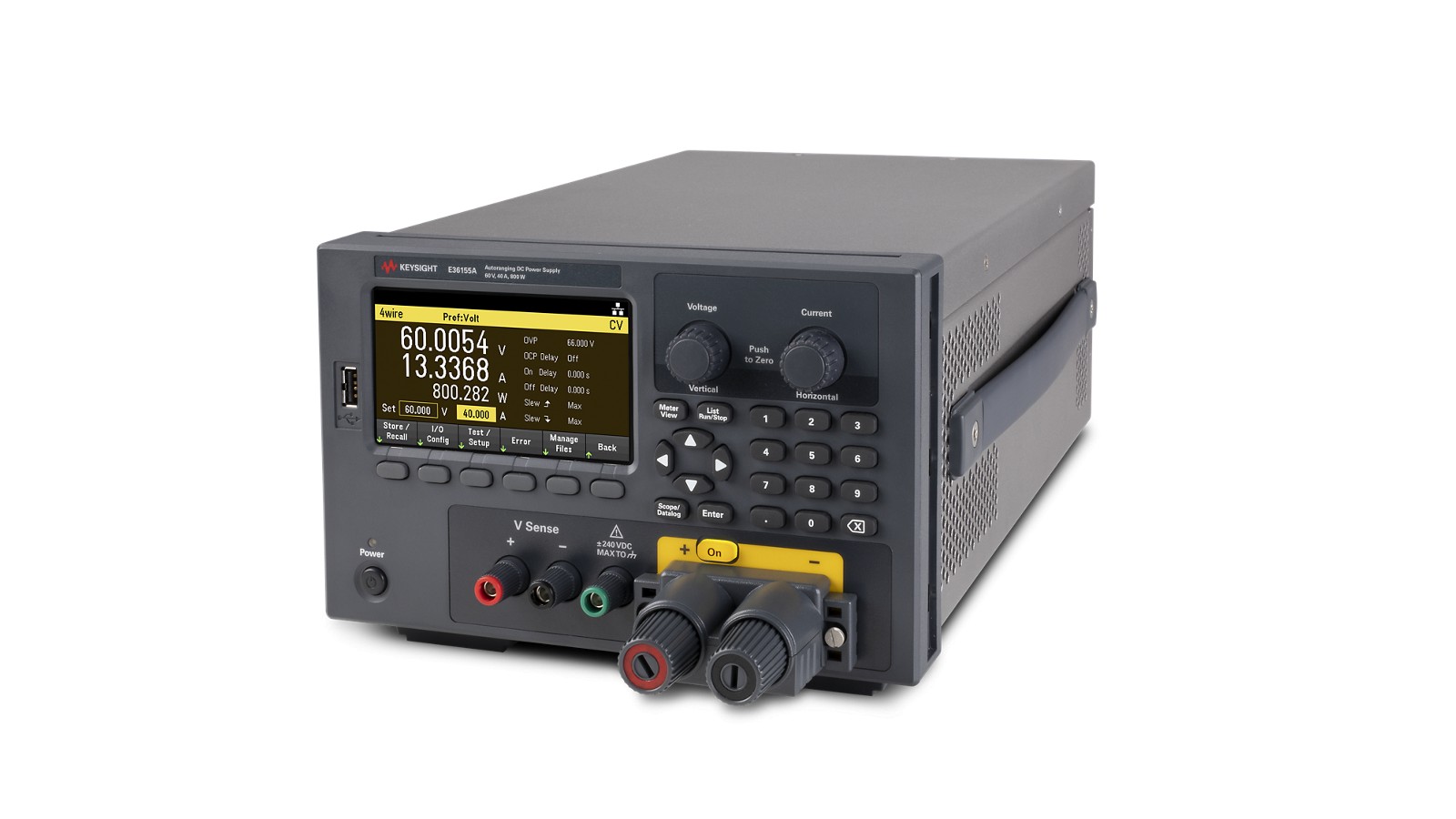

Keysight E36154A 800W Power Supply, 30V, 80A, autoranging and E36155A 800W Power Supply, 60V, 40A, autoranging

These unique power supplies will offer Advanced feature capabilities:

Advanced Features and Capabilities

• Data logging built-in memory and front USB host
• Voltage and current traces measurements
• Output sequencing/synchronization with input/output triggers
• Low-range current measurement
• Adjustable voltage slew rate
• LIST mode output
• Peak Power Handling
• Scope View (Upgrade Option)
• AWG (Upgrade Option)

Get More Usable Power on the Bench

Two Autoranging Models

• E36150 Series capabilities that provide more current and higher power at all voltages offering higher flexibility and more applications:
• Autoranging architecture – Greatly increases V-I combinations at Pmax.
• Peak power handling – Handle short burst of load spikes/start-up currents of up to 3X of max power at 2400W. Useful for DUT with electromechanical components.
• Low current measurement – Able to capture the extreme low end of highly dynamic current range up to μA resolution.

High Power Bench Solution

Optimized for Front Panel Operation and User Interface

• 3U, half rack built great as standalone on the bench or mountable on a rack. Unique rack mount kits provides suitable weight distribution, adequate heat management and routing wires for optimum use of space.
• 4.3-inch color LCD display to create, edit, monitor, delete etc.
• Intuitive easy to use interface – Dedicated knobs for voltage and current controls, and soft key buttons.
• Smart control fan speed to minimize acoustic noise.
• Front panel outputs for 4-wire remote sensing
• Digital control and trigger input/outputs
• File management – Access, create, edit, import, export files from internal storage or external drive from the front USB port. Screenshot for quick data/waveform captured by long pressing [Meter View].

Best-in-Class Overall Performance

Accurate, Fast and Reliable

• Adjustable slew rate – Control unwanted inrush current to ramp voltage over time protecting sensitive devices.
• Accurate voltage output and measurements – 4-wire remote sensing ensure actual selected voltage is provided to the load by compensating errors on voltage drop in the leads. The sense leads also provide accurate voltage readback measurements.
• Accurate current measurements – Built-in current measurements with auto-datalogging capability.
• Over-voltage/current/temperature protections – Overlimit auto-monitoring and shutdowns and front panel lockout, ensure safety for users, instruments and DUT.
• Fast and accurate programming – output and transient response speed and accuracy to achieve stable output power for DUT
• Low power supply output noise – Clever circuit design and digital filtering provide good stability and low output noise even on an 800W power supply.
