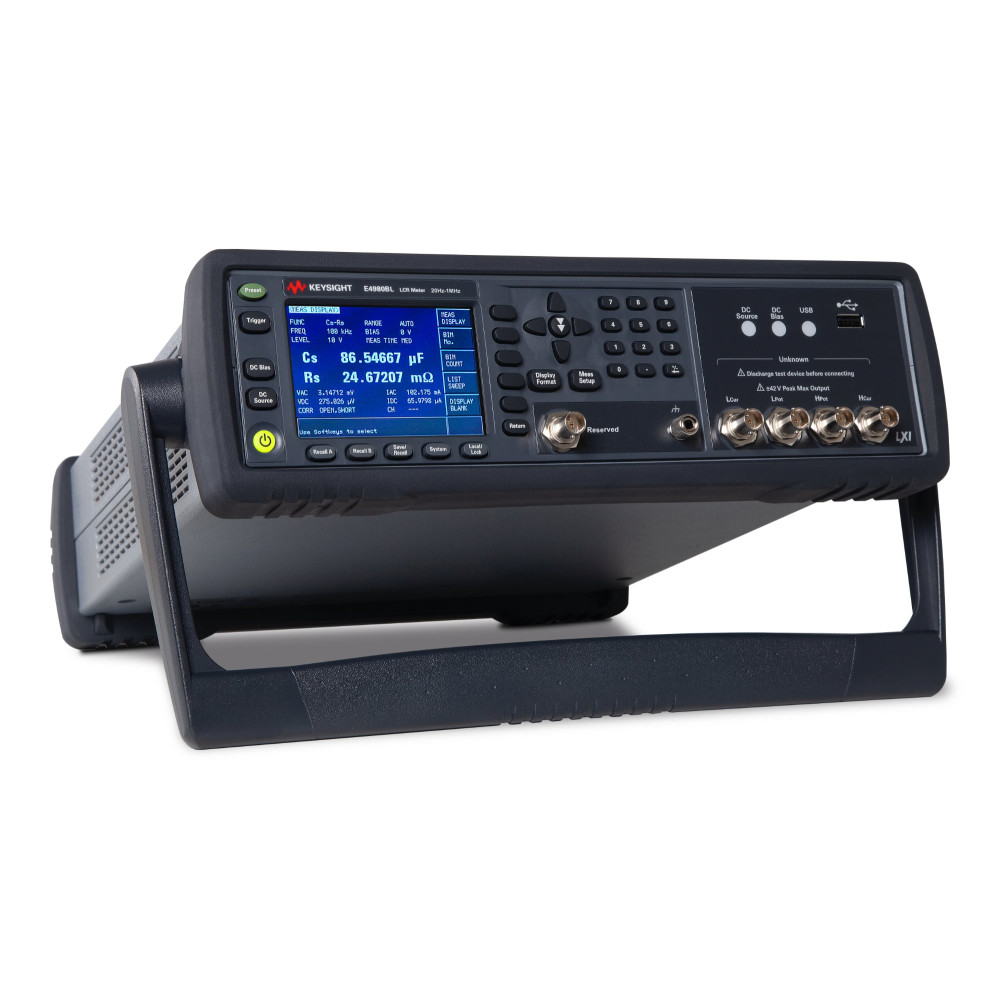

The Keysight E4980BL precision LCR meter is an industry-standard LCR meter that combines accuracy, speed, and versatility for a wide range of component measurements. The available frequency upgrades provide a strong investment option and asset utilization.
The E4980BL is an essential tool for general R&D and manufacturing tests of components and materials, offering fast measurement speed and exceptional performance across both low and high-impedance ranges.
The versatile LAN, USB, and GPIB PC connectivity enhance your design and test productivity. For materials measurements, the E4980BL paired with the Keysight N1500A-005/006 materials measurement suite simplifies the entire process, from fixture setup to report generation.
20 Hz to 300 kHz/500 kHz/1 MHz, with four-digit resolution in any range
0.05% basic accuracy with superior measurement repeatability at low and high impedance
100 uV to 2 Vrms; 1 uA to 20 mA variable test signal
DC bias 1.5 / 2 V
auto-level control
DC resistance
201 points list measurement sweep
versatile PC connectivity (LAN, USB, and GPIB)
frequency upgradability
