RD Microwaves has released a unique attenuation solution based upon a low PIM module that offers a low-cost modular solution that is offered as an individual connectorized unit or packaged in a variety of enclosures. The basic module covers 600-6000MHz including CBRS, C-Band, LAA, and WIMAX, and is available with power levels of 20, 40, or 60 Watts. Attenuation values can be provided from 3-40 dB.

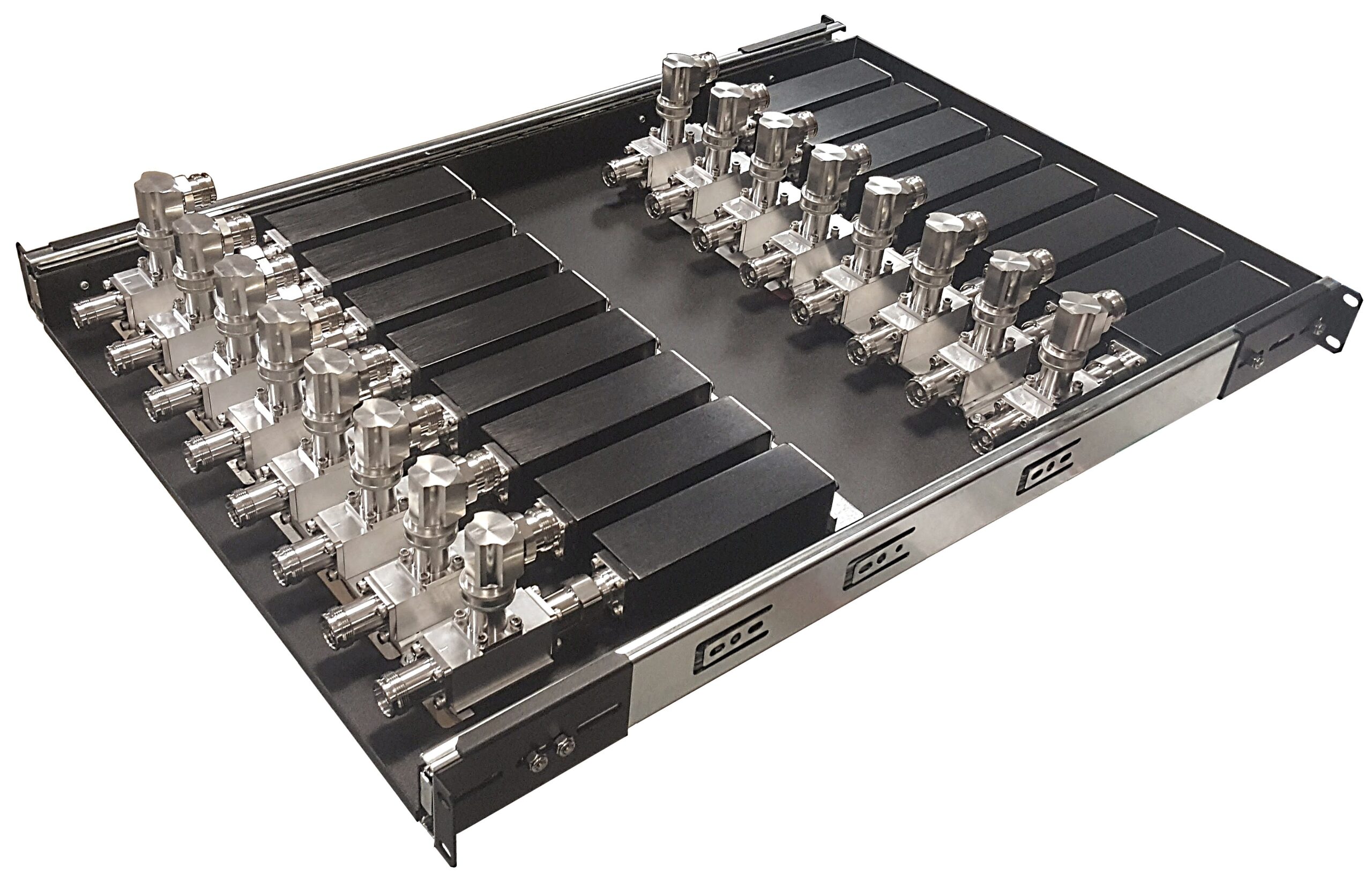

The Assembly Model DAS-B28 shown is a 1u 19 inch sliding drawer tray that has (16) 20 Watt attenuator paths with in-line 4.3-10 connectors with inputs on one side and outputs on the other. The connector orientation is field adjustable.
The modules are also available separately with option to stack 2 or more in a DIN rail rack with a choice of connectors, 7-16DIN, 4.3-10, or NEX10. They are also used in custom attenuation trays and various enclosures with multiple attenuation paths from a “few’ to as many as 20 in a single tray that can be stacked in 19 inch Server Racks with capacity to “hundreds “ of attenuation paths with high density packaging.
