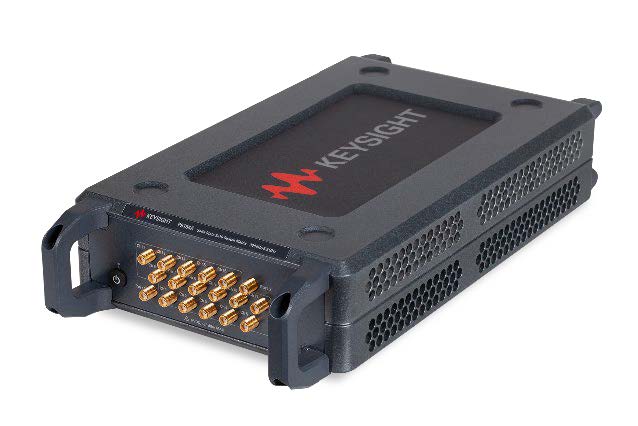

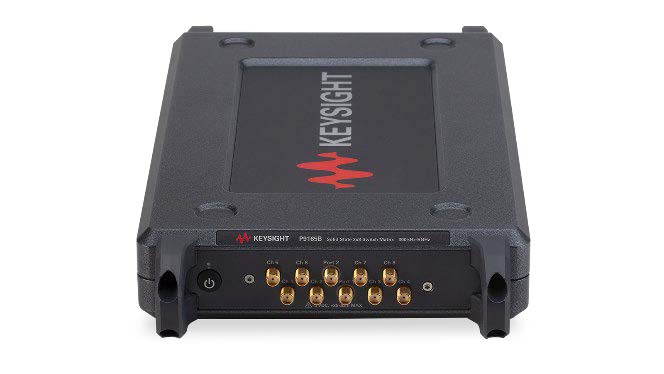

P9164A/B/C 2X16 & P9165A/B/C 2X8 USB Solid State Switch Matrix

300 KHz to 6.5/9/18 GHz

Keysight P916x A/B/C 2X8/16 USB solid state switch matrix, 300 KHz to 6.5/9/18 GHz is a full crossbar switch matrix. It works seamlessly with Keysight’s P50xxA streamline series of VNA solution in providing a switch based multiport VNA solution in the form of compact USB controlled involving larger scale of multi-DUT or multiport measurement such as 5G massive MIMO antenna measurement and others. The P916xA/B/C is compact and portable. Together with exceptional RF performance, it delivers confidence in your measurement for a reliable and repeatable results while at the same time reducing the overall cost of test.

Compact Form. Zero Compromise

• Choose frequency ranges from 300 KHzup to 18 GHz
• Extend the number of test ports for multi-DUT or multiport devices measurement
• Portable and easily share the compact switch matrix between your location (USB), highly flexible and easily configurable (PXIe) meeting demanding multiport measurement challenges
• Achieve lower cost-per-port test without compromising performance and bench space

Specifications

Datasheet for P9164A/B/C 2X16 & P9165A/B/C 2X8 USB Solid State Switch Matrix
