MWX0 series provides excellent phase stability against both bending and temperature fluctuations from -30 to +85°C. They are ideal for use with Vector Network Analyzers for precision measurement requirements.

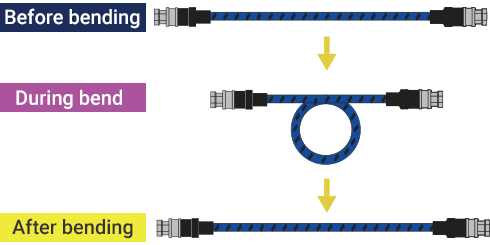

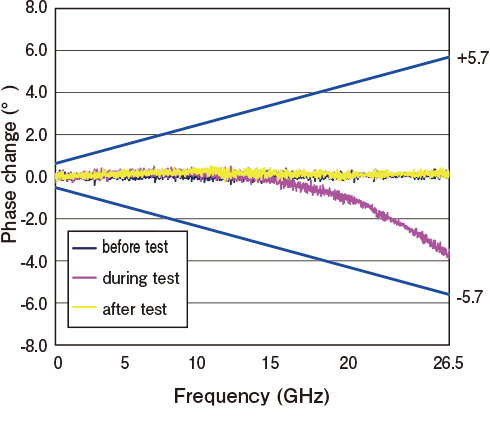

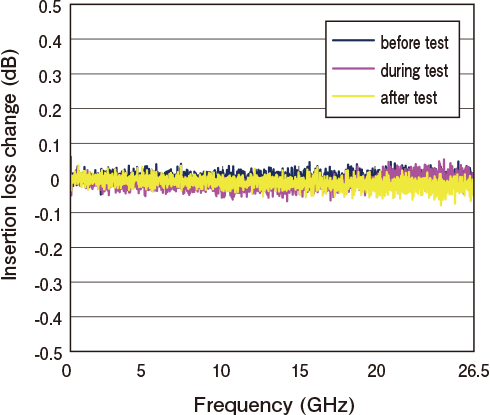

Insertion loss and phase change are measured through a cable that is connected to a measurement instrument. Both properties are measured under a bend condition using a φ60mm mandrel.
