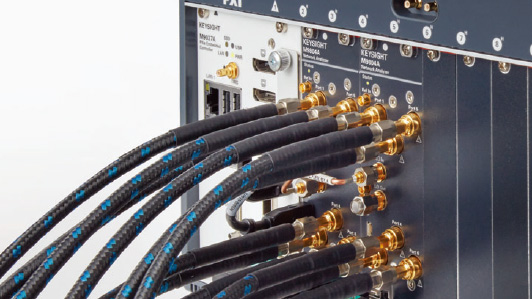

Phase Stability & Slim Cable Up to 67 GHz
Property
| Maximum operating frequency | 67.0 GHz |
| Characteristic impedance (typ.) | 50 ± 1 Ω |
| Capacitance (typ.) | 90 pF/m |
| Propergation delay (typ.) | 4.35 ns/m |
| Velocity of propagation (typ.) | 77 % |
| Higher mode frequency (typ.) | 70 GHz |
| VSWR (typ.) | 1.21 / 1.46 |
| Maximum frequency insertion loss( 67.0 GHz ) | 7.3 dB/m |

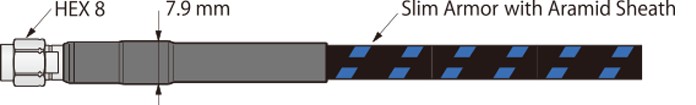

| Maximum outer diameter | 7.9 mm(0.311 inch) |
| Cable outer diameter | 6.5 mm (0.256 inch) |
| Minimum bending radius (inner side) | 30 mm |
| Cable mass (typ.) | 79 g/m |
| Continuous operating temperature range | -65 〜 +125 ℃ |
| Armored side pressure | 196 N/cm |
| Assembly length | 600 〜 1,500mm
(24 〜 60 inch) |

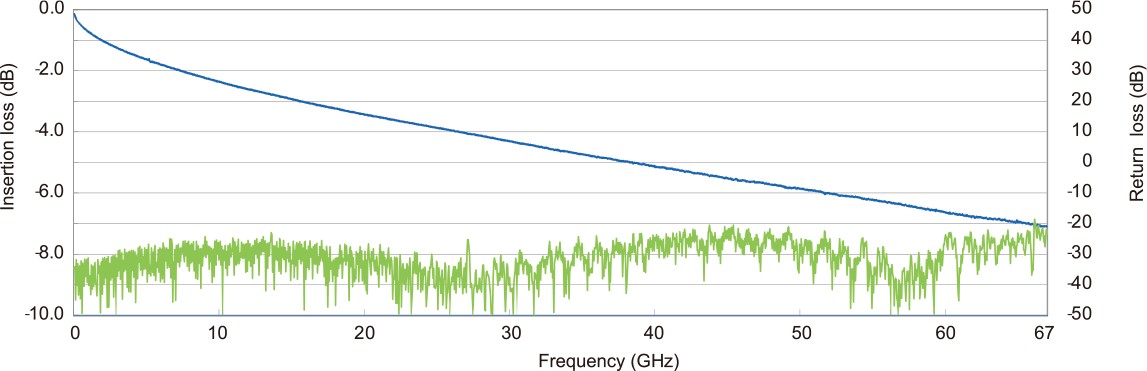

Insertion loss and Return loss
Assembly length 1000mm, Connector: Both side 1.85 mm (m)
Static bending data
(insertion loss, phase)
Bending radius: 30 mm
The above figures are measured values for reference only.
The cable was wrapped 360 degree around Φ60 mm mandrel.

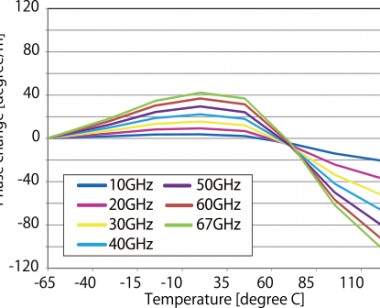

Phase change vs. temperature
The cable was measured in chamber every 20 〜 30 degree C from -65 to 125 degree C, 30 minutes after the temperature changed. Figure shows the excellent phase stability over the temperature changes.

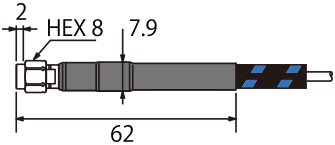

3.5mm(m) [Code:DMS]
Maximum frequency:
26.5 GHz

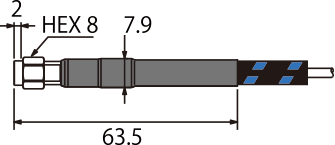

2.92mm(m) [Code:KMS]
Maximum frequency:
40.0 GHz
2.4mm(m) [Code:LMS]
Maximum frequency:
50.0 GHz
1.85mm(m) [Code:VMS]
Maximum frequency:
67.0 GHz
| Assembly length: | 1000mm |
|---|---|
| Connector Ⅰ: | 3.5mm(m) |
| Connector Ⅱ: | 3.5mm(m) |
| Assembly length: | 610mm |
|---|---|
| Connector Ⅰ: | 2.4mm(m) |
| Connector Ⅱ: | 1.85mm(m) |
