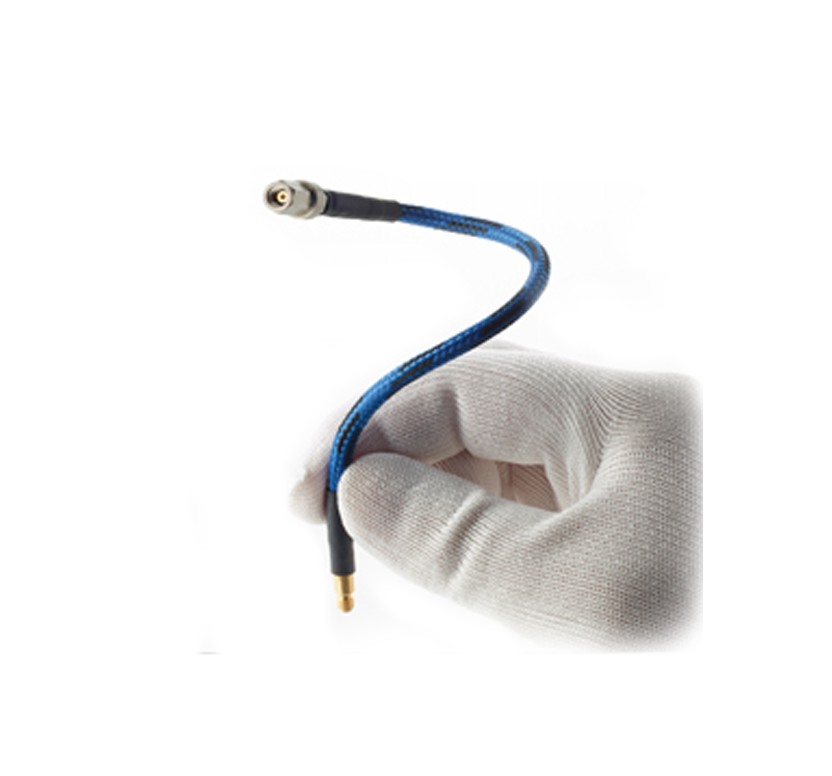

Flexible & Hand Formable
• Low insertion loss and excellent phase stability against bending up to 110GHz.
• High quality signal transmission with excellent flexibility and form-sustainability.
• 1.0mm(m) and 1.0mm(f) connectors are available.
• Standard type armored with SUS spiral tube for mechanical damage reduction.
Cable Type
| Electrical Properties | |
|---|---|
| Maximum operating frequency | 110.0GHz |
| Characteristic impedance (typ.) | 50Ω |
| Capacitance (typ.) | 88pF/m |
| Propergation delay (typ.) | 4.2nsec/m |
| Wavelength reduction rate (typ.) | 79% |

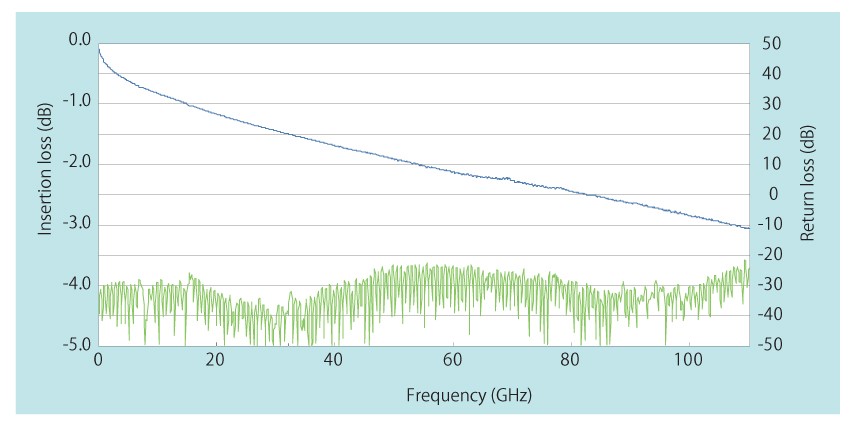

| Max.frequency insertion loss (typ.) | 14.1dB/m |
| VSWR (per connector / both connector) | 1.197 / 1.43 |
| Mechanical Properties | |
|---|---|
| Cable outer diameter | 4.0mm |
| Minimum bending radius (inner side) | 15mm |
| Cable mass (typ.) | 50g/m |
| Continuous operating temperature range | -30 to +85 °c |
| Assembly length | 100 to 200mm |
| Armored side pressure | 157N/cm |
