Sometimes you need a basic oscilloscope with a little more functionality — features like advanced waveform math, higher updates rates, or mixed signal capabilities. All of this is available in the InfiniiVision 2000 X-Series to enable you to perform deeper analysis in an entry-level oscilloscope.

  • PathWave BenchVue oscilloscope software for remote control, data logging, and automated testing
  • Achieve 70 MHz to 200 MHz of bandwidth
  • Teach your students how to use an oscilloscope with the Educator’s Oscilloscope Training Kit
  • View more signals at once with 8 digital channels in the mixed signal analysis option (MSO)
  • Simulate operations with standard advanced math functions
  • Isolate and analyze pulses, bursts, or infrequent glitches with segmented memory
  • Perform easy pass / fail analysis with mask testing
Keysight InfiniiVision 2000 X‑Series Oscilloscopes
New call-to-action

With the InfiniiVision 2000 X-Series Oscilloscopes you can:

– See more of your signal more of the time with the largest screen in its class, the deep memory, and the fastest waveform update rates
– Do more with the power of 5 instruments in 1: Oscilloscope, logic timing analyzer, WaveGen built-in 20 MHz function generator (optional), serial protocol triggering and decode (optional), and digital voltmeter (optional)
– Get more investment protection with the classes only fully upgradable scope, including memory and bandwidth

See more, do more and get more from your Keysight InfiniiVision 2000 X-Series oscilloscope

  • See your signal detail with the large, 8.5-inch display
  • Get up to 5 instruments in 1: oscilloscope, digital channels (MSO), WaveGen built-in 20 MHz function generator (optional), serial protocol triggering and decode (optional), and digital voltmeter (Standard)
  • Add functionality as you need it with bandwidth, MSO, measurement applications and WaveGen

Keysight InfiniiVision 2000 X-Series Oscilloscopes at NWS

DSOX2002A Oscilloscope: 70 MHz, 2 Analog Channels

New call-to-action

MSOX2002A Mixed Signal Oscilloscope: 70 MHz, 2 Analog Plus 8 Digital Channels

New call-to-action

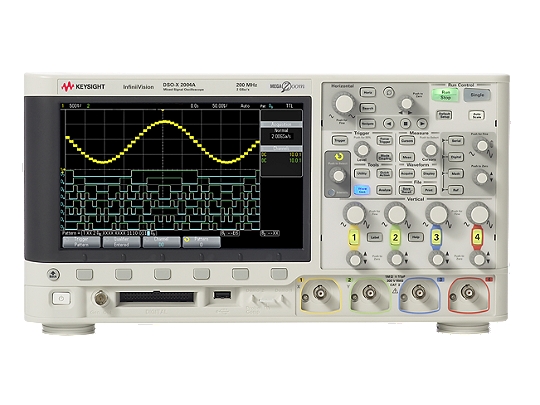

DSOX2004A Oscilloscope: 70 MHz, 4 Analog Channels

New call-to-action

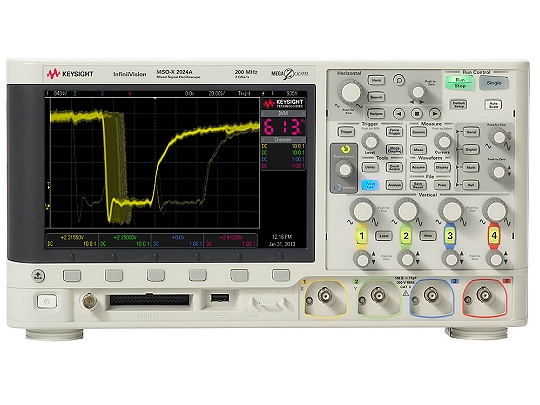

MSOX2004A Mixed Signal Oscilloscope: 70 MHz, 4 Analog Plus 8 Digital Channels

New call-to-action

DSOX2012A Mixed Signal Oscilloscope: 100 MHz, 2 Analog Plus 8 Digital Channels

New call-to-action

DSOX2014A Oscilloscope: 100 MHz, 4 Analog Channels

New call-to-action

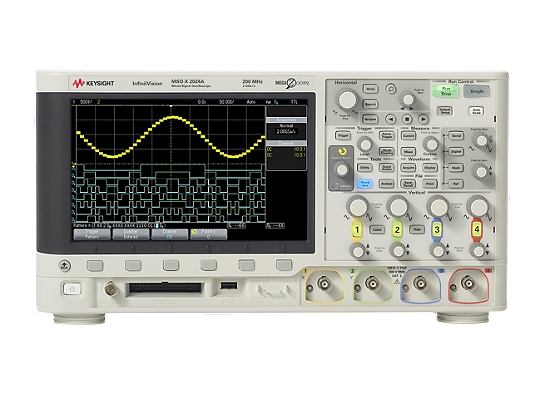

MSOX2014A Mixed Signal Oscilloscope: 100 MHz, 4 Analog Plus 8 Digital Channels

New call-to-action

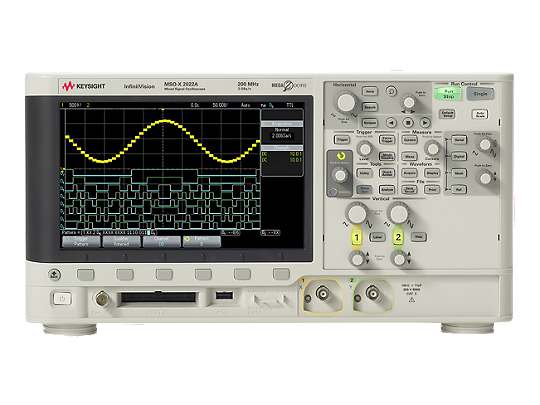

DSOX2022A Oscilloscope: 200 MHz, 2 Analog Channels

New call-to-action

MSOX2022A Mixed Signal Oscilloscope: 200 MHz, 2 Analog Plus 8 Digital Channels

New call-to-action

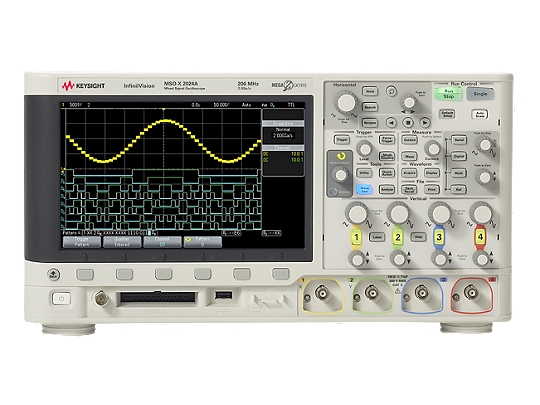

DSOX2024A Oscilloscope: 200 MHz, 4 Analog Channels

New call-to-action

MSOX2024A Mixed Signal Oscilloscope: 200 MHz, 4 Analog Plus 8 Digital Channels

New call-to-action

Software for the Keysight InfiniiVision 2000 X-Series Oscilloscopes

Expand your InfiniiVision 2000 X-Series Oscilloscopes capabilities with powerful applications

  • Standard Educator’s Training Kit

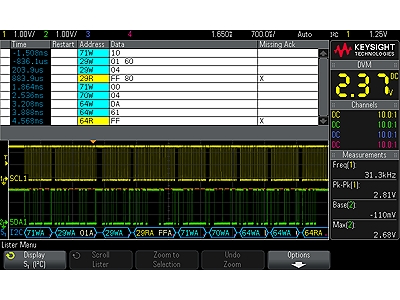

  • Trigger and decode serial buses like I²C, SPI, RS232, CAN, and LIN with hardware-based decoding
  • Hardware-based mask/limit testing
  • BenchVue software for simple connection and results recording
