NWS is an Authorized Distributor of Keysight Infiniium S-Series oscilloscopes. S-Series scopes bring together top-of-the-line hardware and the latest in innovative software to give engineers the ultimate measurement performance.

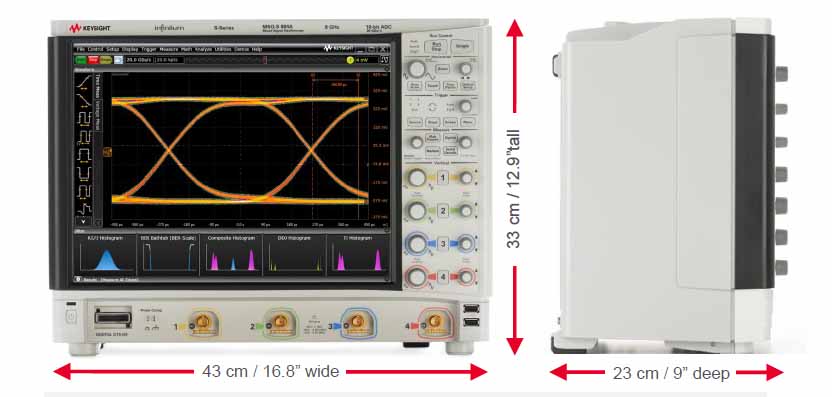

The Infiniium S-Series oscilloscopes’ low-noise front-end and 10-bit ADC provide unmatched fidelity for signals up to 8GHz. With a high resolution mode, you can get even greater noise performance and up to 16 bits of vertical resolution. The S-Series includes a wide array of high-speed digital debug tools, a removable 240GB solid-state drive (SSD) for lightning fast boot-up, data offload up to 200MB/s via USB 3.0, and a powerful quad-core processor and 8GB of RAM for fast processing. All that in an advanced frame with a large, 15” capacitive touch display that makes using Infiniium S-Series oscilloscopes easy and intuitive.

Infiniium S-Series oscilloscopes were designed for best-in-class signal integrity. Whether you’re debugging a new design or verifying performance, the S-Series gives you a platform with low noise, low jitter, fast performance, and high ENOB so that you can get the most out of your measurements.

Keysight Infiniium S-Series Key Features:

  • 500 MHz – 8 GHz models
  • Up to 16 bits, 20 GSa/s
  • 800 MPts memory
  • Superior signal integrity
New call-to-action

There are numerous accessories available for the Infiniium S-Series oscilloscopes, including specialized adapters for IC connections, solder-in connections, sockets, ZIF, quick connectors, and more.

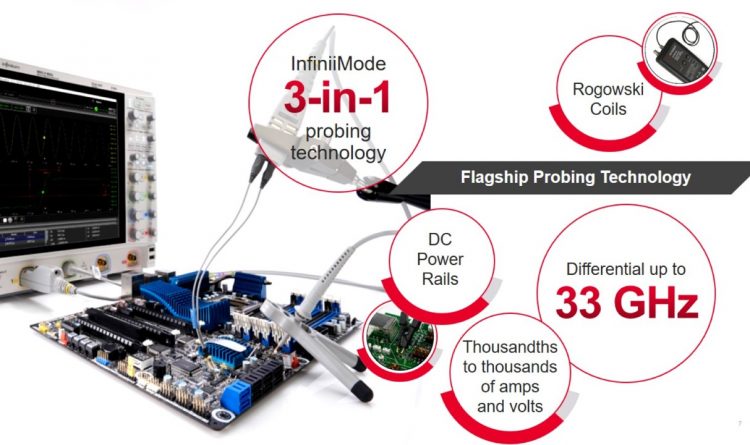

Keysight Technologies offers many specialized probes compatible with the Infiniium S-Series. The new InfiniiMode probe can take single ended and differential measurements simultaneously. The new DC power rail probes are designed to measure small ripple on large DC signals. The new Rogowski coil current probes can be used to measure multiple kiloamps and much more.

Keysight Technologies’ Probe Resource Center can help you find compatible probes and accessories for all your test needs.

Excels at signal integrity

The Infiniium S-Series oscilloscopes provide the best overall signal integrity across all major specs:

  • Vertical resolution: up to 16 bits
  • Vertical noise: as low as 74 uV
  • Frequency response flatness: hardware correction filters for magnitude and phase
  • Timescale accuracy: 12 parts per billion
  • Intrinsic jitter: 100 fs
  • Effective bits: up to 8.1

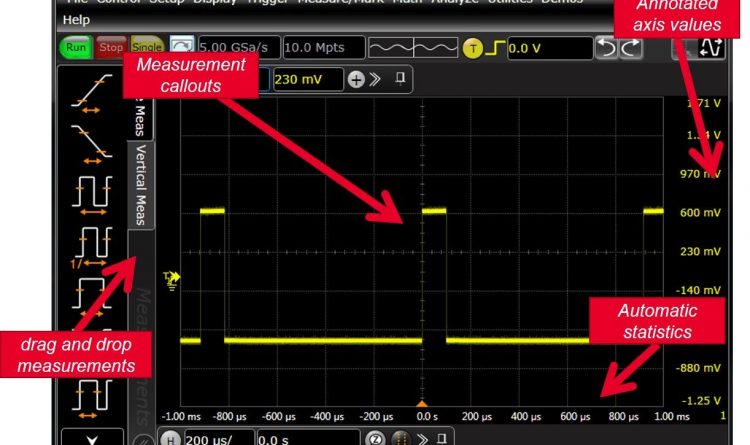

Intuitive user interface

The Infiniium S-Series’ next-generation UI is designed to enable the most advanced viewing functionality coupled with the easiest learning curve. Simple measurements can be completed in a drag-and-drop window. Axes are automatically labelled with proper units. Callouts can be toggled on or off when taking screenshots. Statistics are automatically compiled. And the list goes on.

Suite of standard measurements

Eye diagrams, clock recovery, FFT, and 50+ voltage and timing measurements included

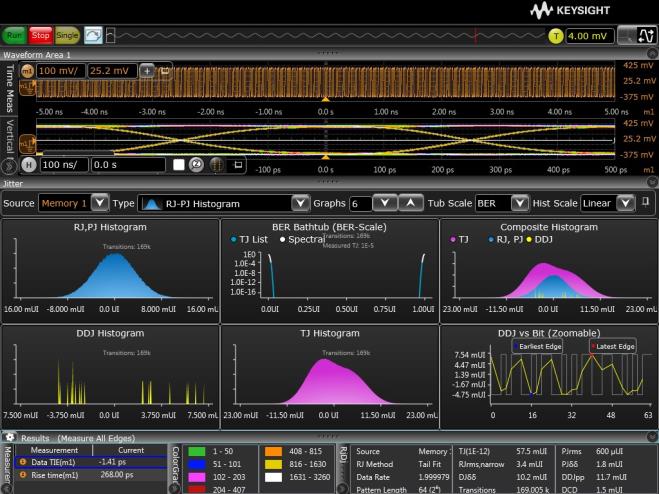

Advanced jitter

Analyze, measure, deconstruct and plot different components of jitter and noise

De-embedding/equalization

Get wider eyes by removing effects of cables or fixtures

Power integrity

Analyze power supply induced jitter or switching current loads

Cross talk

Simulate and remove the effects of aggressors

Keysight Infiniium S-Series Oscilloscope Available at NWS

DSOS054A S-Series Oscilloscope: 500 MHz, 4 Analog Channels

New call-to-action

MSOS054A S-Series Oscilloscope: 500 MHz, 16 Digital Channels

New call-to-action

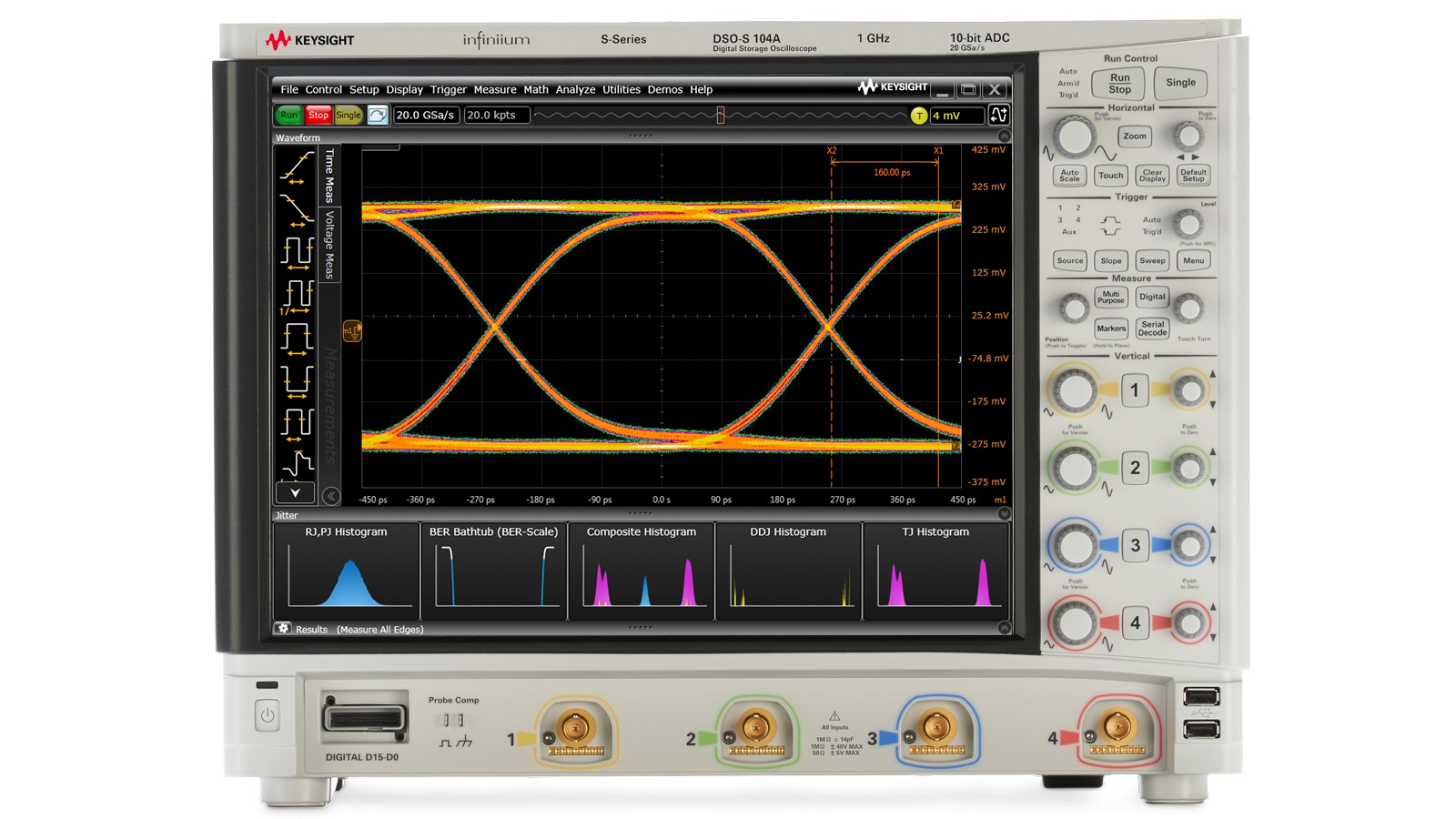

DSOS104A S-Series Oscilloscope: 1 GHz, 4 Analog Channels

New call-to-action

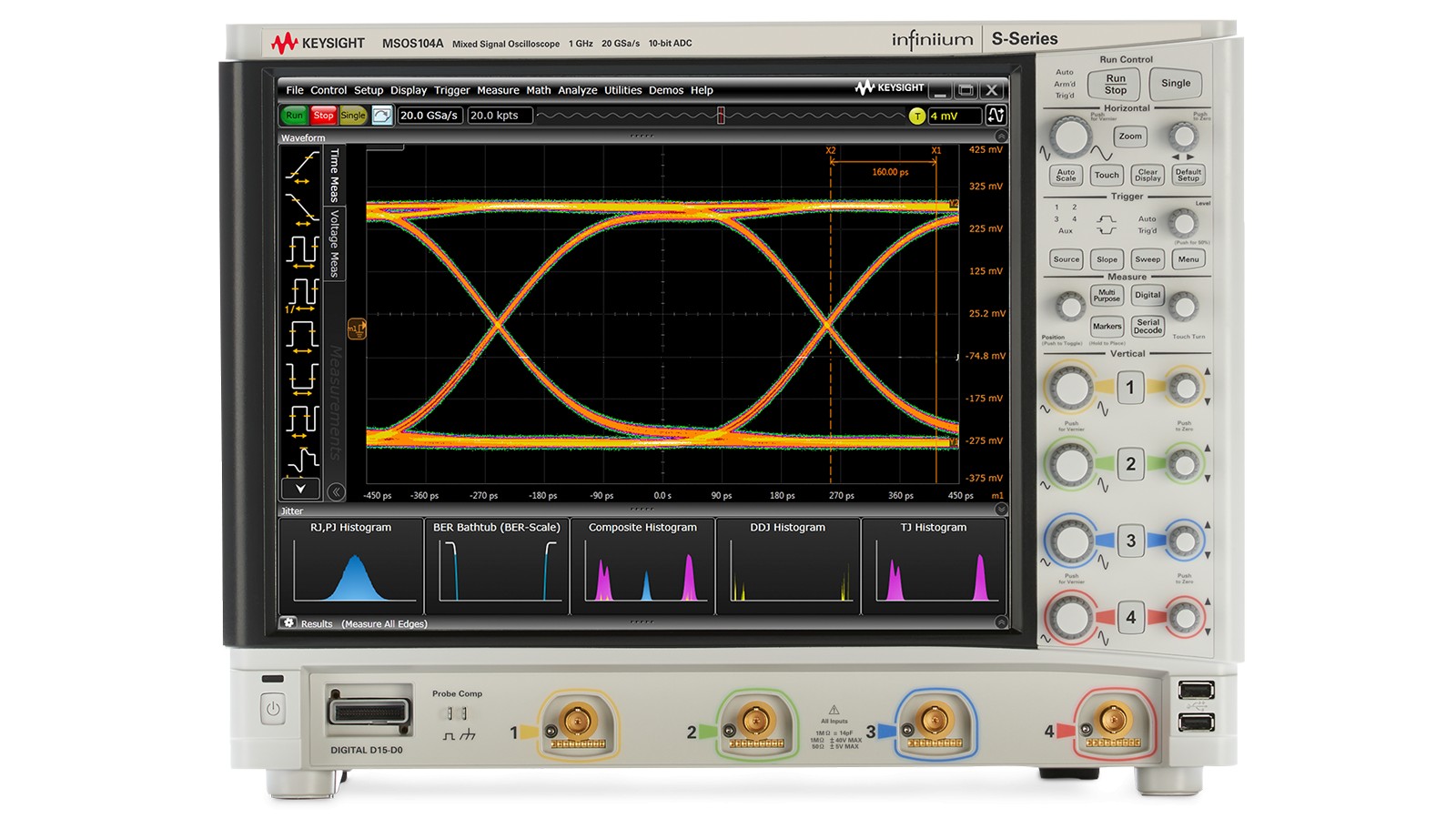

MSOS104A S-Series Oscilloscope: 1 GHz, 16 Digital Channels

New call-to-action

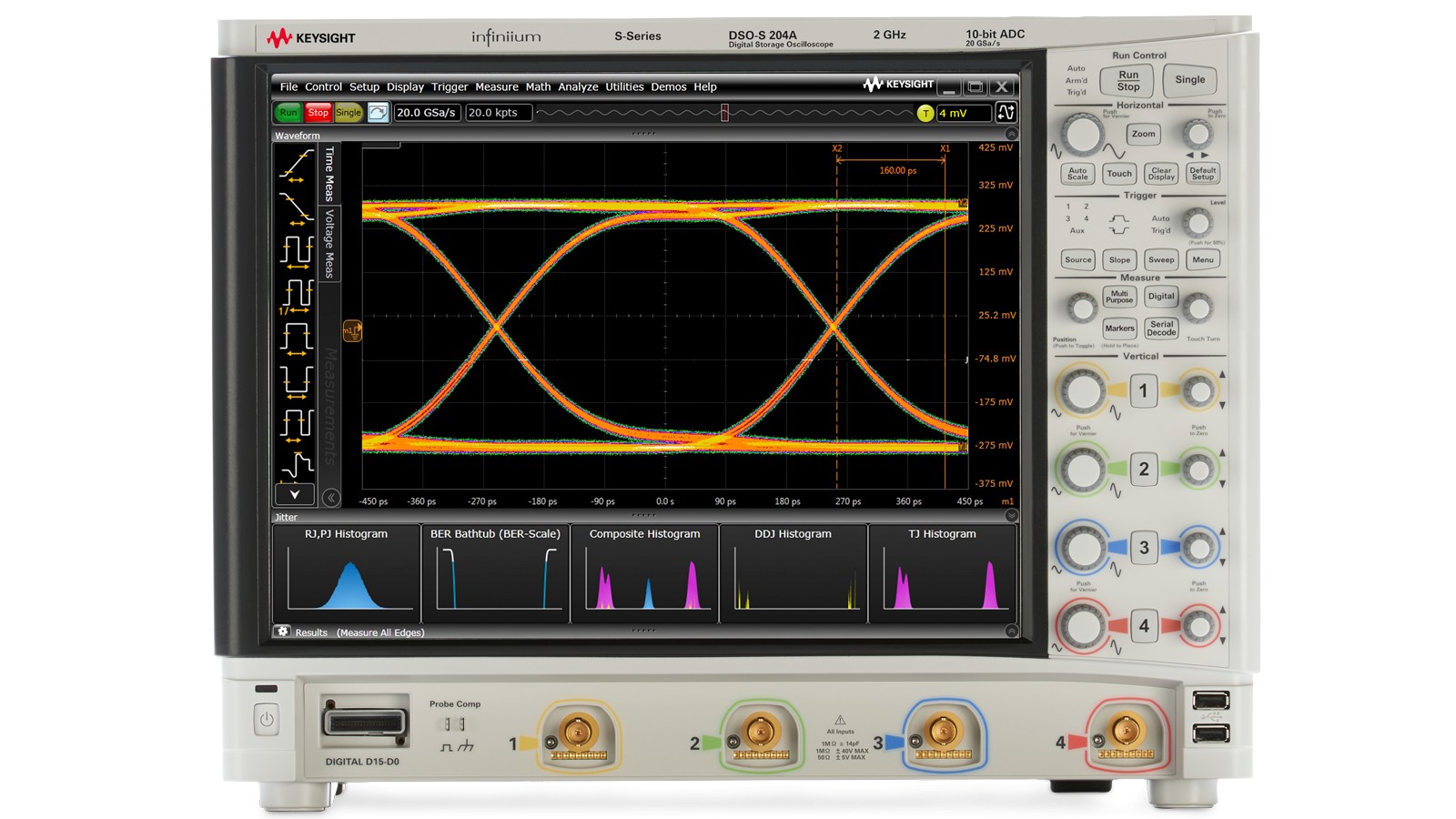

DSOS204A S-Series Oscilloscope: 2 GHz, 4 Analog Channels

New call-to-action

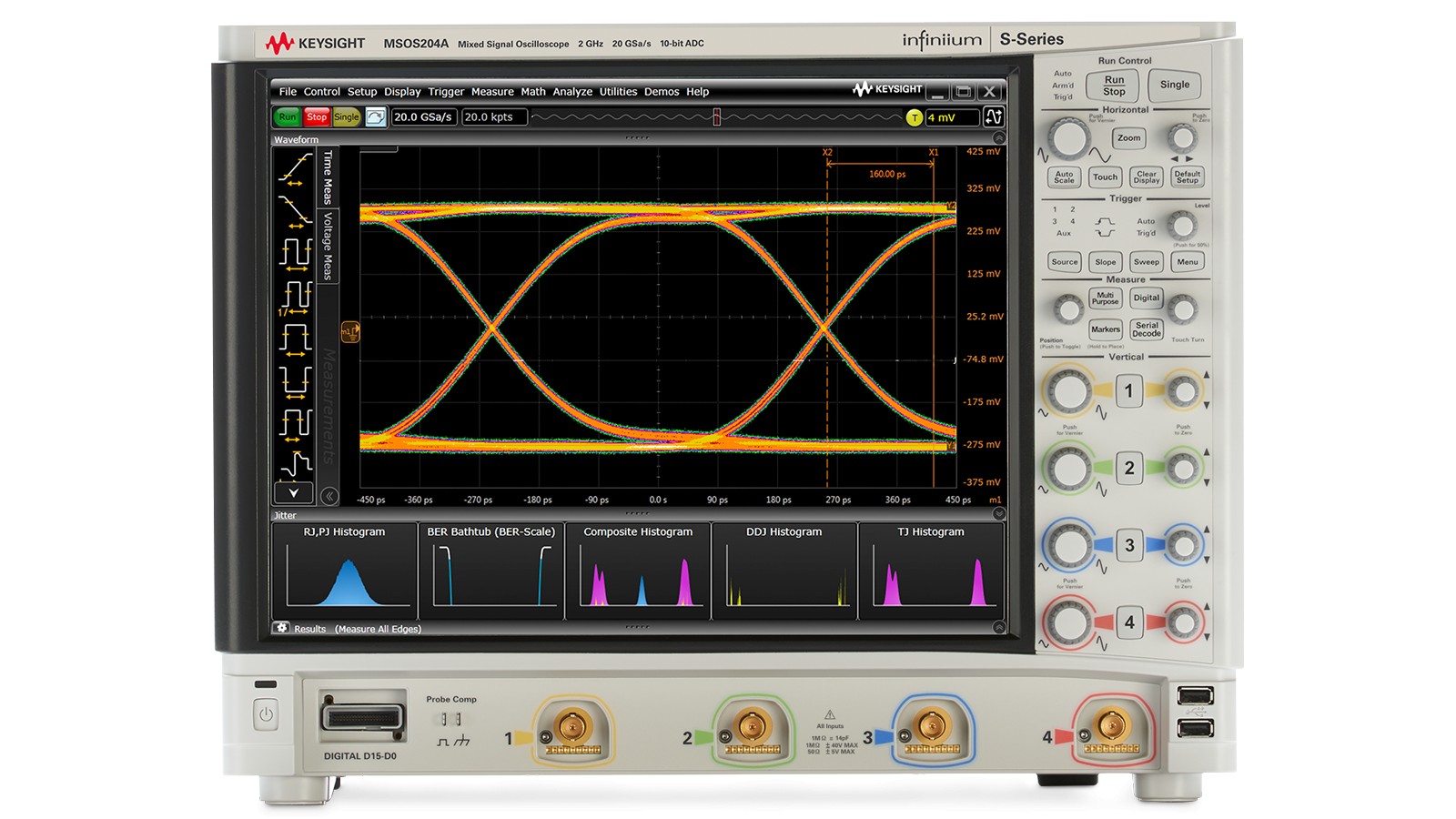

MSOS204A S-Series Oscilloscope: 2 GHz, 16 Digital Channels

New call-to-action

DSOS254A S-Series Oscilloscope: 2.5 GHz, 4 Analog Channels

New call-to-action

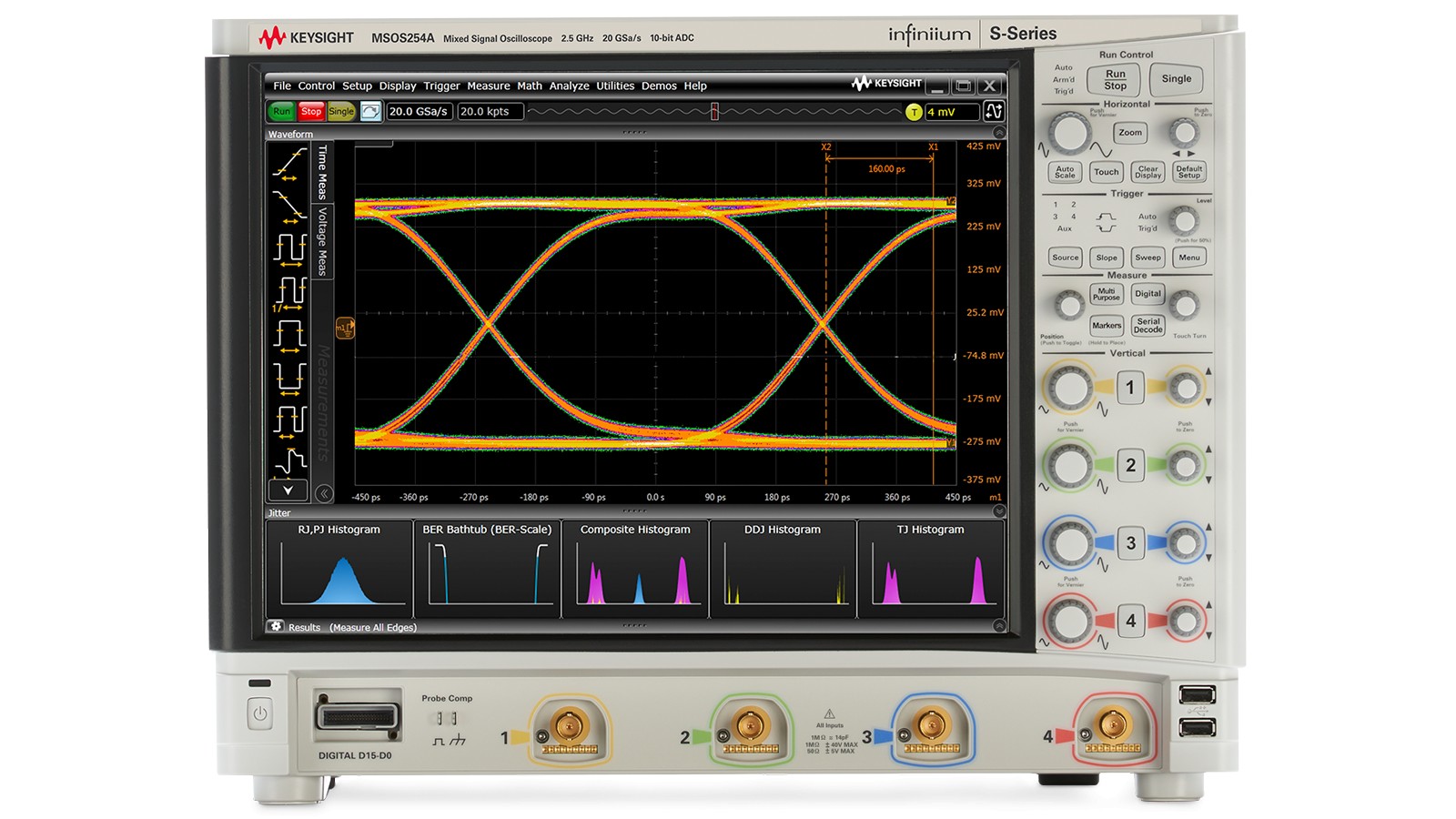

MSOS254A S-Series Oscilloscope: 2.5 GHz, 16 Digital Channels

New call-to-action

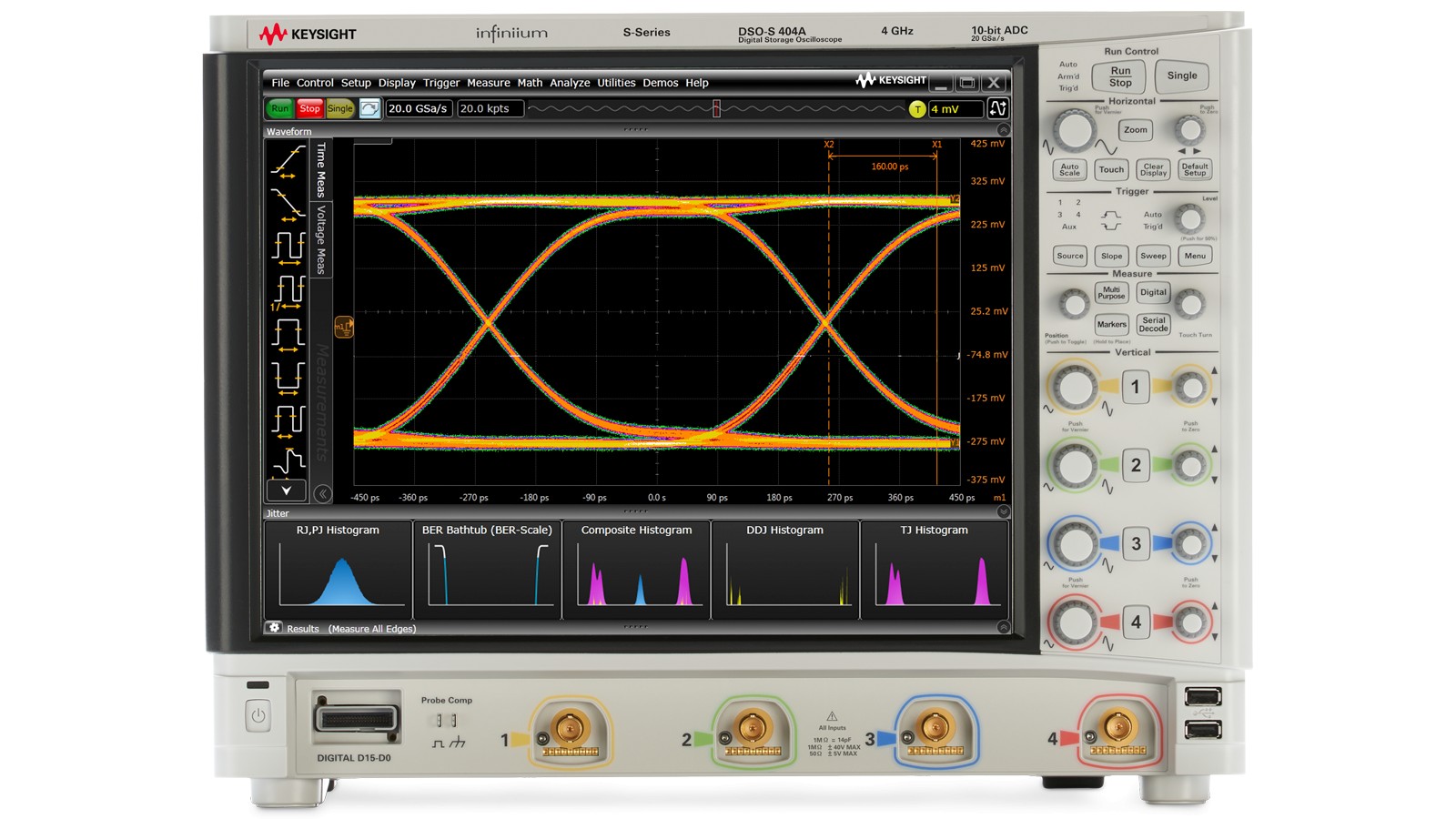

DSOS404A S-Series Oscilloscope: 4 GHz, 4 Analog Channels

New call-to-action

MSOS404A S-Series Oscilloscope: 4 GHz, 16 Digital Channels

New call-to-action

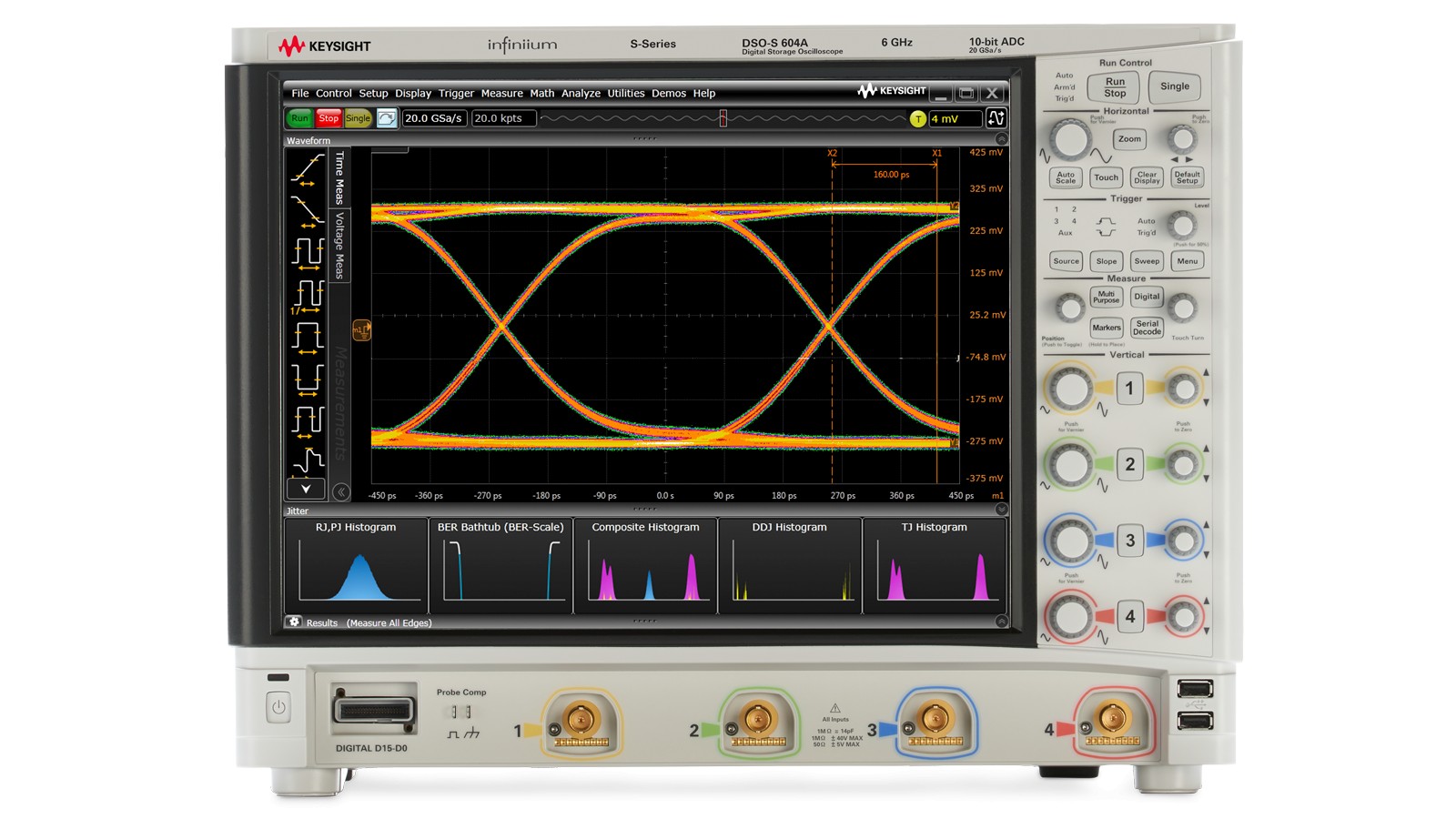

DSOS604A S-Series Oscilloscope: 6 GHz, 4 Analog Channels

New call-to-action

MSOS604A S-Series Oscilloscope: 6 GHz, 16 Digital Channels

New call-to-action

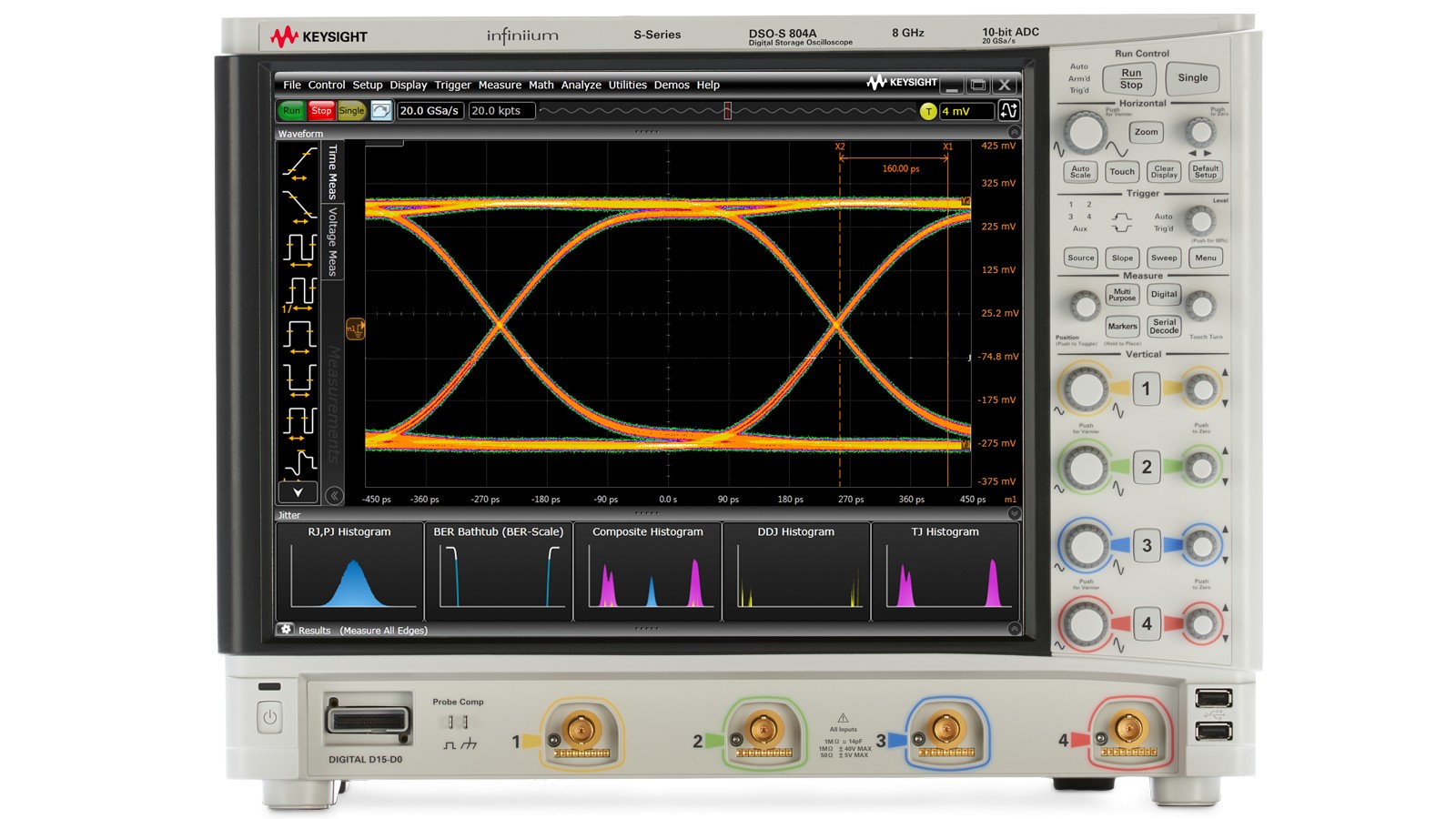

DSOS804A S-Series Oscilloscope: 8 GHz, 4 Analog Channels

New call-to-action

MSOS804A S-Series Oscilloscope: 8 GHz, 16 Digital Channels

New call-to-action
