Perfect tool for different microwave system analysis and measurement applications

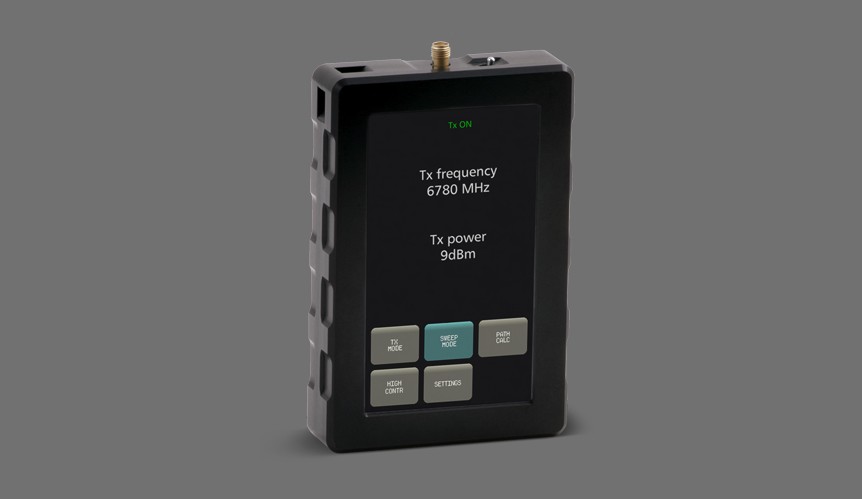

Essential tool for antenna alignment and testing and top choice for LoS verification applications. Device is perfect for different microwave system analysis and measurement applications. It has intuitive control and interactive GUI with instant on/off functionality, resistive touchscreen allows working with gloves on.
| P/N | J0SSAG11 | J0SSAG12 | J0SSAG13 | J0SSAG14 | ||||
| Frequency bands | 6/7/8/10/11 GHz | 10/11/13/15/17 GHz | 17/18/23/24 GHz | 24/26/30/32/38 GHz | ||||
| Frequency range | 5.925 – 12.000 GHz | 10.000 – 18.000 GHz | 17.000 – 24.300 GHz | 24.000 – 40.000 GHz | ||||
| Output power range | -3 dBm to +13 dBm |
-3 dBm to +11 dBm | -3 dBm to +10 dBm | -3 dBm to +5 dBm | ||||
| Adjustable frequency step | 1 MHz | 1 MHz | ||||||
| Adjustable power step | 1 dBm | 1 dBm | ||||||
| Signal form | Continuous wave | Continuous wave | ||||||
| Guaranteed accuracy | +/- 1 dBm | +/- 1 dBm | ||||||
| Output | 50 ohm SMA (f) | 50 ohm 2.92mm (f) | ||||||
| Interface | mini USB 2.0 (1.1) | mini USB 2.0 (1.1) | ||||||
| Battery | LiPo 2200mAh (3.7V), up tp 4h | LiPo 2200mAh (3.7V), up tp 3h | ||||||
| Operating temperature | -15ºC to +40ºC / 5ºF to 104ºF | -15ºC to +40ºC / 5ºF to 104ºF | ||||||
| Dimensions | 128 x 81 x 24 mm / 5.04 x 3.2 x 0.94 in | 130 x 81 x 28 mm / 5.11 x 3.2 x 1.1 in | ||||||
| Weight | 0.3 kg / 10.6 oz | 0.4 kg / 14.11 oz | ||||||
