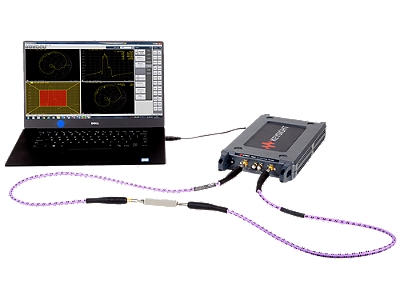

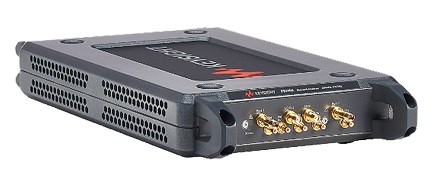

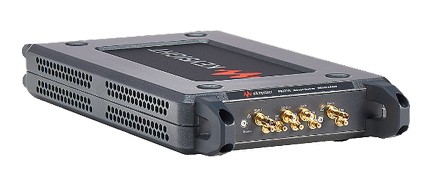

Balance deadlines, productivity, budget and bench space with the Keysight P937xA, a member of Keysight’s Streamline Series. You’ll move confidently across every stage of your product’s development lifecycle by leveraging accurate and repeatable measurements, automated code capability, and consistent, intuitive user experience. With comprehensive Keysight services including calibration, education and consulting, these instruments enhance your solution to help you accelerate technology adoption and lower costs. The P937xA series, Keysight’s first compact vector network analyzer (VNA), is an affordable full two-port Vector Network Analyzer which dramatically reduces the size of the test. The compact Vector Network Analyzer has wide frequency coverage with six frequency breaks, that operates from 300 kHz up to 26.5 GHz. The Keysight USB Vector Network Analyzer is packaged in a compact chassis and controlled by an external computer with powerful data processing capabilities and functionalities. The firmware running on the PC has the same intuitive GUI as the other Keysight Vector Network Analyzers which allows you to reduce switching cost between models.
The Keysight USB Vector Network Analyzer offers the good performance on key specifications such as dynamic range, measurement speed, trace noise and temperature stability. It utilizes the same measurement science with the trusted Keysight VNAs, you can have consistent measurement results.
– Measurement speed: 24 msec (201 points, full 2-port cal, 100 kHz IFBW)
– Dynamic range: > 114 dB at 9 GHz > 110 dB at 20 GHz (10 Hz IFBW)
– Trace noise: < 0.003 dBrms (1 kHz IFBW)
– Stability: 0.005 dB/degree C up to 4.5 GHz
– Manual test of passive components (e.g. antennas, filters, cables, connectors,
adaptors)
– Wireless component manufacturing test
– Aerospace/defense manufacturing test
– Evaluation/design validation in classified environment
– Most compact VNA for easy sharing between test locations
– Wide choice of frequency ranges from 300 kHz up to 26.5 GHz
– Ability to extend the number of test ports (max 4-port)
– Frequency and software upgrades at any time
– Common GUI and measurement science within trusted Keysight VNAs
– Support of Electronic Calibration (ECal) Modules for easy and quick calibration
