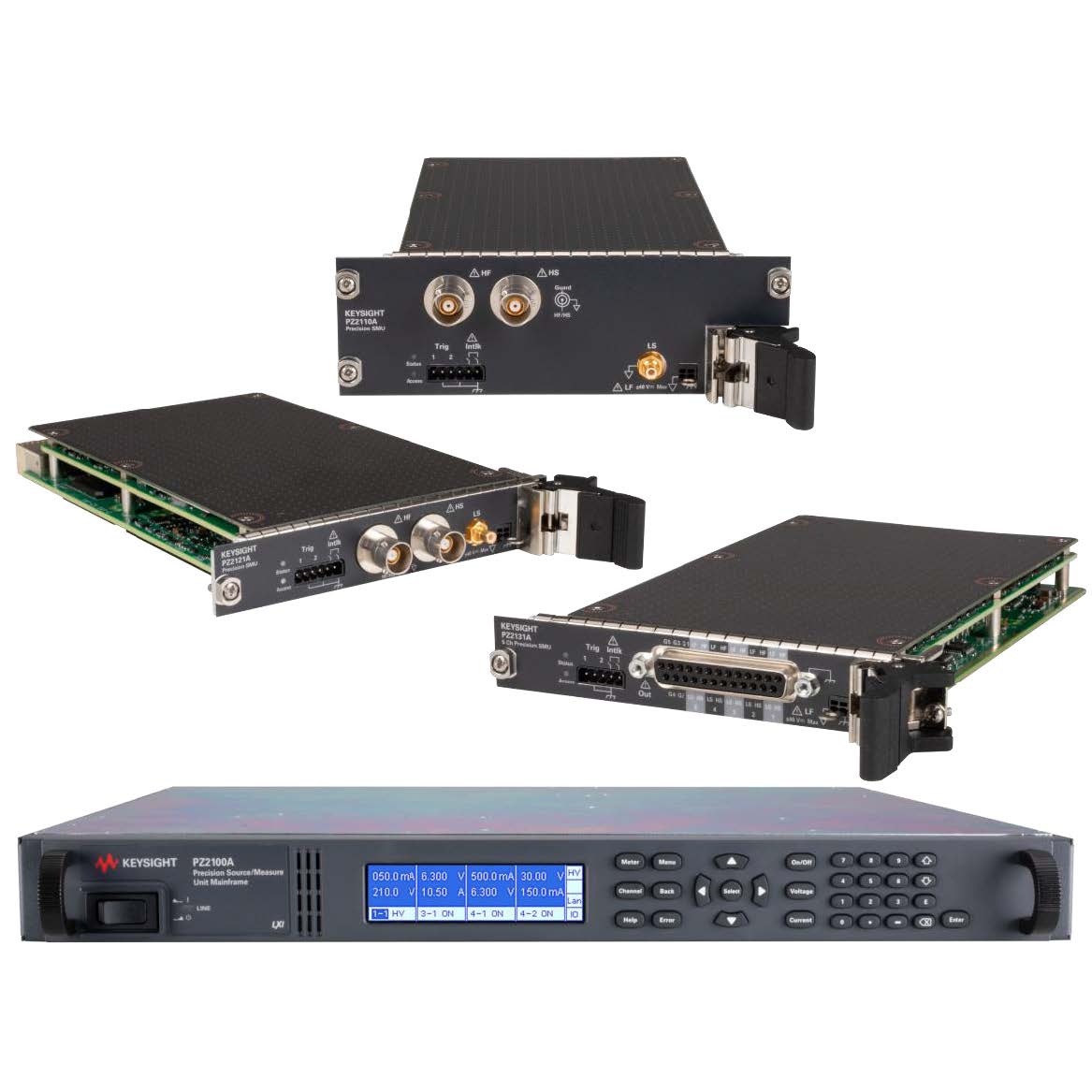

The Keysight PZ2100 Series is the leading automated test equipment (ATE) solution that integrates enormous source / measure unit (SMU) resources into valuable rack space with flexible module options. The PZ2100 provides flexible scalability with multiple SMU module options covering a wide range of applications, from conventional static DC measurements down to 10 fA to emerging dynamic / pulsed measurements up to 15 MSa/s and down to 10 μs width.

The PZ2100 provides an uncompromising high-density integration that fully uses available rack space, slots, or SMU module capabilities. The PZ2100 enables a lower cost per channel and 20x smaller rack space than conventional SMUs, significantly reducing your test costs and saving valuable rack space.

Key Benefits

Save cost and valuable rack space

• 5 SMU module options flexibly configurable and upgradable in 1U, 4 slot mainframe at lower cost/ch
• Scalable up to 20 ch, 20x higher density than conventional SMU
• SMU integrating pulser/digitizer eliminates the need for additional instruments

Wide application coverage from DC to dynamic measurements

• Wide output range of up to 210 V / 3.5 A DC / 10.5 A pulse
• Low current measurement supported by min. 10 fA high resolution
• Dynamic/pulsed measurement with 15 MSa/s sampling rate and 10 μs narrow pulse
• Wide dynamic range with auto ranging and seamless ranging

Simple integration and time efficiency

• Single box solution simplifies synchronization with multiple SMUs at < 50 ns accuracy
• User-friendly GUI accelerates the test prototyping, debugging, and troubleshooting
• SCPI programming via LAN / USB / GPIB for easy adoption to various environment
• PathWave IV Curve Software enables quick measurements without programming
