ADRF

ADRF is the leading Original Equipment Manufacturer (OEM) of in-building wireless solutions that ensure reliable connectivity in venues of any size, shape and location. Established in 1999 in Burbank, CA, ADRF prides itself on having a customer-centric focus, designing solutions that meet each customer’s unique needs, while providing a pathway to scale for the future. Today, they serve some of the world’s leading enterprises, system integrators, public safety entities, neutral host operators, and wireless service providers.

ADRF Public Safety Solutions

NFPA & IFC Compliant Fiber Optic Repeater

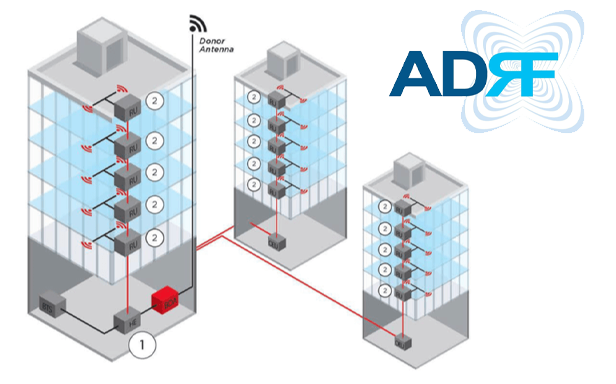

In times of emergency, seamless and reliable communication is crucial for the safety of first responders and building occupants alike. The ADRF’s FiRe™ Series is a revolutionary FirstNet compliant in-building wireless solution which combines ADRF’s PSR-78-9533 public safety 700/800 MHz channelized repeater with the industry’s most flexible ADXV Series distributed antenna system (DAS) Head End (HE) in a single compact enclosure.

ADRF Products at NWS

ADRF SDR Series

ADRF FIRE Series

ADRF ADXV Series

SDR SERIES

The next generation of Low-Power Repeaters. Modular, compact, and future-proof

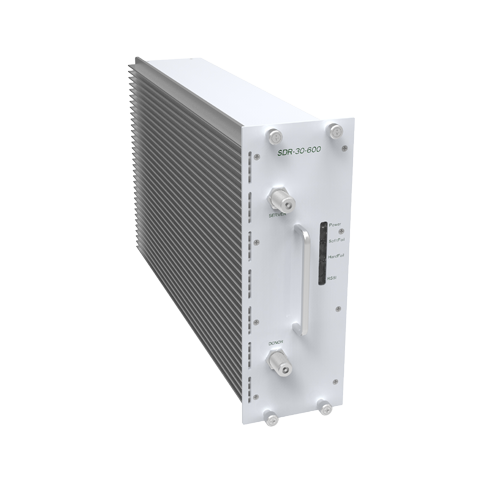

SDR-30-600

Downlink Frequencies: 617 – 652 MHz
Uplink Frequencies: 663 – 698 MHz
Digitally filtered with sharp roll-off (>50 dBc @ +1 MHz from sub-band edge)
90 dB of max gain
30 dBm max output power

Get A Quote

SDR-24/30/33-700F

Downlink Frequencies: 728 – 757 MHz
Uplink Frequencies: 698 – 716, 776 – 787 MHz
Digitally filtered with sharp roll-off (>50 dBc @ +1 MHz from sub-band edge)
90/95 dB of max gain
24/30/33 dBm max output power

Get A Quote

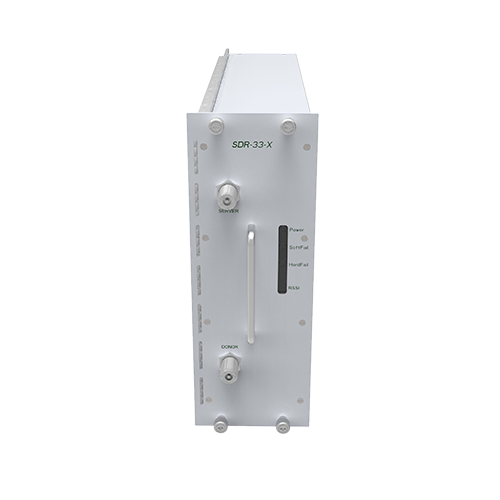

SDR-24/30/33-C

Downlink Frequencies: 869 – 894 MHz
Uplink Frequencies: 824 – 849 MHz
Digitally filtered with sharp roll-off (>50 dBc @ +1 MHz from sub-band edge)
90/95 dB of max gain
24/30/33 dBm max output power

Get A Quote

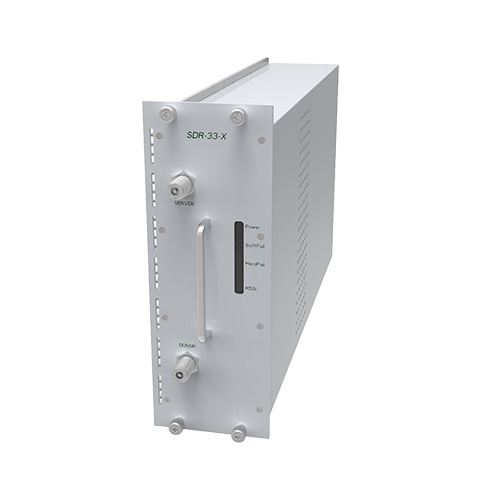

SDR-24/30/33-S

Downlink Frequencies: 851 – 869, 935 – 940 MHz
Uplink Frequencies: 806 – 824, 896 – 901 MHz
Digitally filtered with sharp roll-off (>65 dBc @ +0.5 MHz from sub-band edge)
80 dB of max gain
24/30/33 dBm max output power

Get A Quote

SDR-24/30/33-P

Downlink Frequencies: 1930 – 1995 MHz
Uplink Frequencies: 1850 – 1910 MHz
Digitally filtered with sharp roll-off (>50 dBc @ +1 MHz from sub-band edge)
90/95 dB of max gain
24/30/33 dBm max output power

Get A Quote

SDR-24/30/33-AF

Downlink Frequencies: 2110 – 2180 MHz
Uplink Frequencies: 1710 – 1780 MHz
Digitally filtered with sharp roll-off (>50 dBc @ +1 MHz from sub-band edge)
90/95 dB of max gain
24/30/33 dBm max output power

Get A Quote

SDR-24/30/33-B

Downlink Frequencies: 2620 – 2690 MHz
Uplink Frequencies: 2500 – 2570 MHz
Digitally filtered with sharp roll-off (>50 dBc @ +1 MHz from sub-band edge)
90/95 dB of max gain
24/30/33 dBm max output power

Get A Quote

SDR-33-BT

Downlink/Uplink Frequencies: 2496 – 2562 MHz, 2502 – 2568 MHz, 2618 – 2684 MHz, 2624 – 2690 MHz
Digitally filtered with sharp roll-off (>50 dBc @ +1 MHz from sub-band edge)
95 dB of max gain
33 dBm max output power

Get A Quote

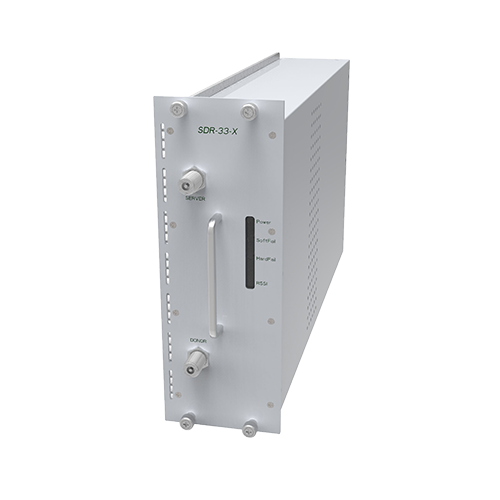

SDR-33-BTF

Downlink/Uplink Frequencies: 2496 – 2690 MHz
Digitally filtered with sharp roll-off: 5G – 30 dBc @ 1 MHz from sub-band edge; 4G – 50 dBc @ 1 MHz from sub-band edge
95 dB of max gain
33 dBm max output power

Get A Quote

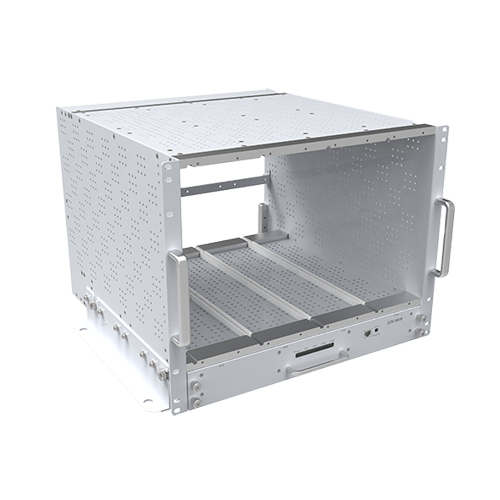

SDR-NMS

Supports up to four (4) SDR Modules
Intuitive and easy to use web-based GUI
Future-proof modular design for flexibility
Supports optional external modems for remote access and alarming
Supports DHCP; No 3rd party GUI software required
Detachable wall mount bracket included

Get A Quote

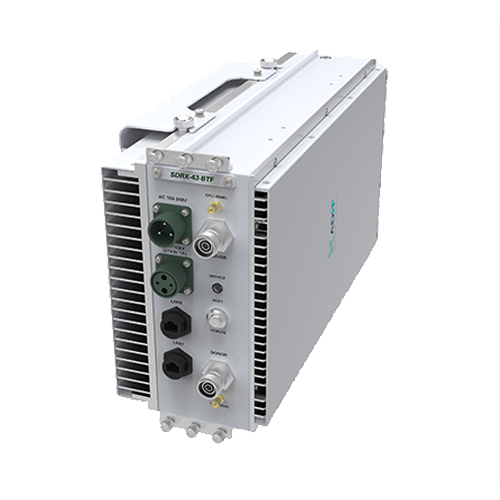

SDRX-43-BTF

Up to 3 non-contiguous selectable channels
Each selectable channel can support from 5 MHz to 100 MHz
Supports both LTE + 5GNR or 5GNR Standalone
Up to 20W composite DL output power
Up to 95dB of gain with selectable gain range of 40dB
Built-in ALC function to prevent overpower

Get A Quote

FIRE SERIES

NFPA & IFC Compliant Fiber Optic Repeaters

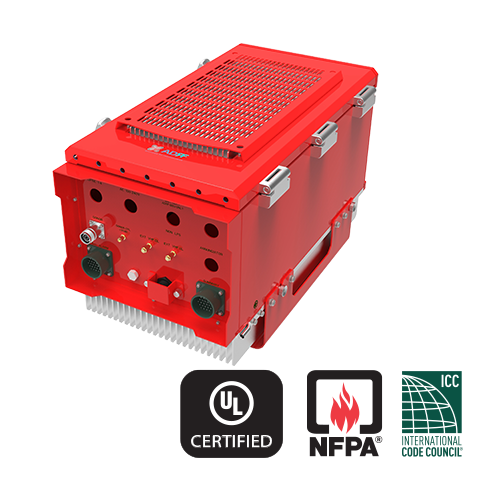

FiRe-78-8-U

Channelized 700/800 MHz Repeater and fiber DAS Head End (HE) in a single unit
NFPA 72-2013, NFPA 1221-2016/2019, NFPA 1225, IFC 2015/2018/2021 code compliant and FirstNet Band 14 compliant
Certified to UL 2524, Second Edition, by Underwriters Laboratories
Up to 32 narrowband and 2 wideband channel support for PS 700 (including FirstNet Band 14) or PS 800
Natively supports up to 8 Remote Units or up to 36 Remote Units in combination with OEU
Oscillation detection feature with automatic amplifier shutdown routine

Get A Quote

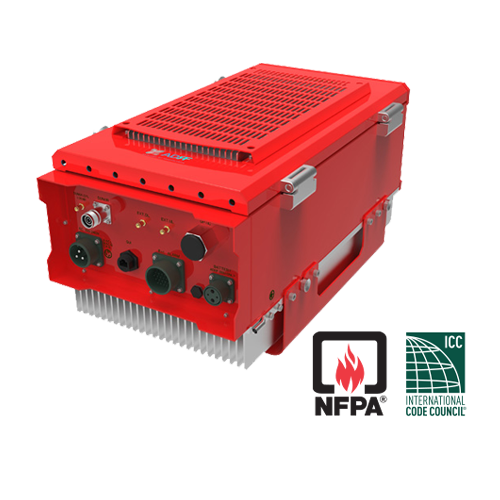

FiRe-78-4

Channelized 700/800 Repeater and DAS Head End (HE) in a single unit
Up to 32 narrowband channel support (PS 700 & PS 800)
Supports up to 4 Remote Units
NFPA 1221 2016 Code Compliant
Up to 33 dBm composite output power per remote
IP66 compliant enclosure

Get A Quote

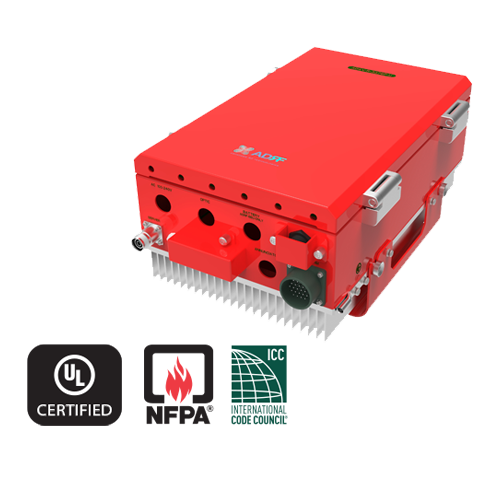

ADRF ADXV-R-3378P-U-with-UL-Certified-NFPA-ICC

ADXV Public Safety Remote Unit (ADXV-R-3378P-U)

2W Public Safety 700/800 MHz Fiber Remote Unit
UL2524 Listed/Certified, Second Edition by Underwriters Laboratories
Built-in Spectrum Analyzer
Dry Contact Alarming
NEMA 4
33dBm Composite Output Power for Public Safety 700MHz/800MHz
Optional Battery Backup Support
PIM Rated 4.3-10 RF Output Connectors

Get A Quote

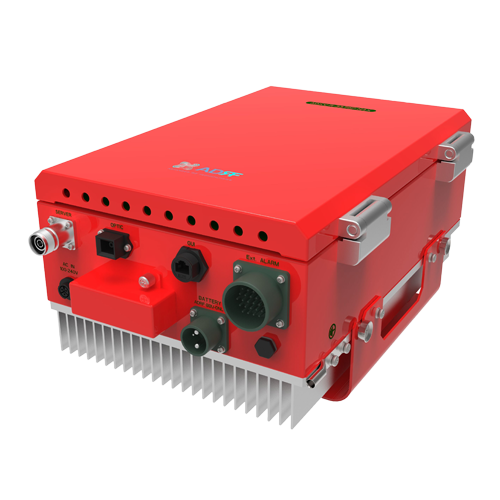

ADXV Public Safety Remote Unit (ADXV-R-3378P-N4X)

2W Public Safety 700/800 MHz Fiber Remote Unit
Built-in Spectrum Analyzer
Dry Contact Alarming
IP66 rated
33dBm Composite Output Power for Public Safety 700MHz/800MHz
Optional Battery Backup Support
PIM Rated 4.3-10 RF Output Connectors
Available External Filter Ports

Get A Quote

ADXV SERIES

The new generation DAS. Smaller and more energy efficient

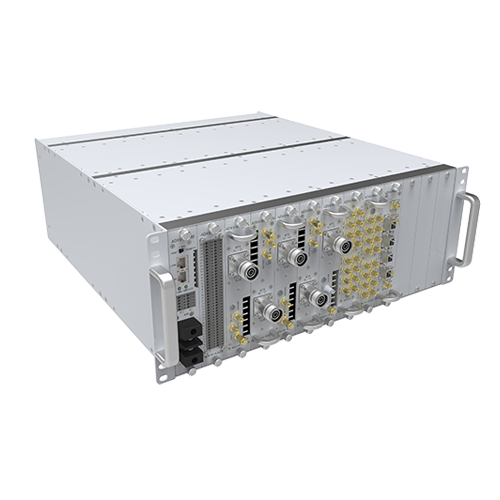

ADXV HE (Head End)

Supports power sharing of multiple carriers’ signals via configurable grouped POI/POIL units
Supports 600MHz, 700MHz + Band14, 700MHz APT, Cellular + SMR800, PCS, AWS, WCS, BRS (TD-LTE), and BRS (TD-LTE/5GNR and FDD-LTE)
Daisy-chain and monitor up to 8 Head Ends from a single point of interface
Web-based GUI and connectivity via DHCP (in host mode); no 3rd party GUI software required
Supports dry contact alarming
Both AC and DC power supply options available
SMB (snap-on) interconnections for quick installation

Get A Quote

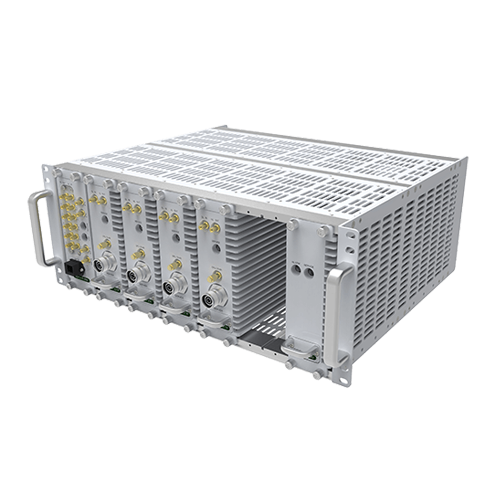

ADXV MPR (Mid-Power Remote)

33dBm of downlink composite output power for 600MHz, 700MHz + Band14, 700MHz APT, Cellular + SMR800
37dBm of downlink composite output power for PCS, AWS, WCS, BRS (TD-LTE), and BRS (TD-LTE/5GNR and FDD-LTE)
IP66 rating without any additional chassis
30dB coupling test ports on each individual remote module
Both AC and DC power supply options available
4.3-10 connectors

Get A Quote

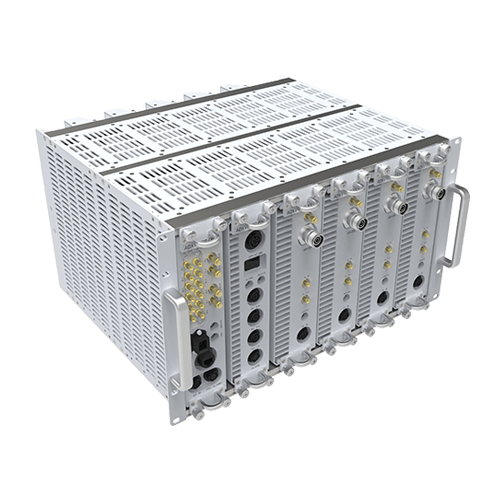

ADXV HPR (High-Power Remote)

43dBm of downlink composite output power for 600MHz, 700MHz + Band14, and Cellular + SMR800
46dBm of downlink composite output power for PCS, AWS, WCS, BRS (TD-LTE), and BRS ((TD-LTE/5GNR and FDD-LTE)
IP66 rating without any additional chassis
40dB coupling test ports on each individual remote module
Both AC and DC power supply options available
4.3-10 connectors
