For over sixty five years the ROHN name has been a leader in the telecommunications industry. The company has used our expertise in structural design and fabrication to expand into additional markets. ROHN is proud to service the major utility and wind energy companies in North America. These markets are just two of the latest to join telecom, sports lighting, broadband, broadcast and the others that have been using ROHN Products to support their
infrastructure projects for six decades
ROHN is committed to providing you the best products in the industry. Our towers are standing on every continent and in nearly every country around the world. That is because we are recognized around the globe as the quality leader in structures. We strive to continue that tradition this year and in the years to come.
The 25G is a light weight tubular tower with solid braces. The tower sections are most often guyed, but can also be used in bracketed and self-supporting applications. Standard sections are 10’ in length, but are also available in a 7‘ length, which is UPS shippable. This tower model has several top options, as well as a variety of tower accessories. The 25G has several base options, including: base cast in concrete, base plate with anchor bolts and also a hinged base.
Standard Design Tower Heights
Guyed: Up to 190’
Bracketed: Up to 100‘
Self-Supporting: Up to 40’
The 45G is a light weight tower, available with tubular or solid round legs with solid braces. The tower sections are most often guyed, but can also be used in bracketed and self-supporting applications. Standard sections are 10’ in length, but are also available in a 20‘ length when ordering solid sections. This tower model has several top options, as well as a variety of tower accessories. The 45G has several base options, including: base cast in concrete, base plate with anchor bolts and also a hinged base. This tower is a true multi-use structure.
Standard Design Tower Heights
Guyed: Up to 300’ [45G] and 350’ [45GSR]
Bracketed: Up to 100‘
Self-Supporting: Up to 45’
The 55G is a tubular tower with solid braces that lends itself to a wide variety of uses, particularly where unusual wind loading and height requirements exist. The 55G was designed to provide excellent strength and rigidity. The tower sections are most often guyed, but can also be used in bracketed and self-supporting applications. Standard sections are 10’ in length. This tower model has several top options, as well as a variety of tower accessories. The 55G is available with a base cast in concrete as well as a tapered base
option.
Standard Design Tower Heights
Guyed: Up to 400’
Bracketed: Up to 100‘
Self-Supporting: Up to 60’

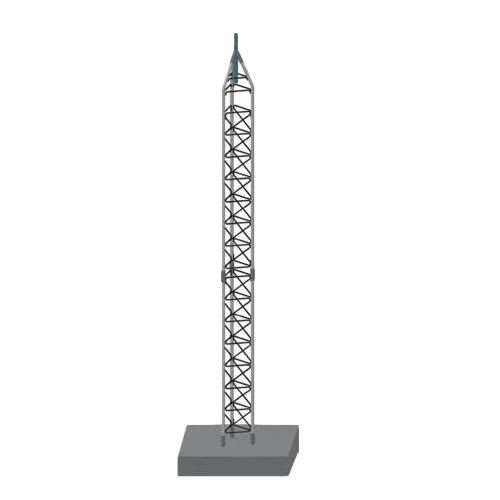

The 65G is available with tubular or solid round legs with solid braces. The tower sections are most often guyed, but can also be used in self-supporting applications. Standard sections are 10’ and 20’ in length. This tower model has a variety of tower accessories, and is available with a base cast in concrete or a tapered base.
Standard Design Tower Heights
Guyed: Up to 500’
Self-Supporting: Up to 80’
