ThinkRF delivers a new category of Software-Defined Spectrum Analysis solutions that monitor and analyze complex RF waveforms in today’s rapidly evolving wireless landscape. Remotely deployable, PC-driven and easily-upgraded, the ThinkRF platforms offer greater versatility, better performance and additional capabilities for Research and Development Applications.

The ThinkRF R5500 Real-Time Spectrum Analyzer – Powerful, Versatile and Cost Effective Platform

The ThinkRF R5500 Real-Time Spectrum Analyzer is built on innovative and highly optimizable software-defined radio (SDR) technologies. This gives users greater versatility, better performance, and additional capabilities to see the full picture in applications such as signals intelligence/electronic intelligence (SIGINT/ELINT), technical surveillance countermeasures (TSCM), and regulatory monitoring. Coupled with real-time digitization and digital signal processing, the R5500 analyzer enables in-depth analysis of complex and wideband waveforms in challenging monitoring environments.

Shop Now

Patented Software-Defined Spectrum Analysis Solution

Hybrid receiver architecture enabling signal processing of modern waveforms
Coverage across wide bandwidths 100 MHz and frequency range 9 kHz to 27 GHz

Networked and Remote Deployable

Optimized for data capture and transfer over an IP network
Designed for portable, remote and/or distributed deployments

PC-Driven for Reduced Size, Weight and Power

Leverages the processing power, versatility and low-cost of the host computer

Data Acquisition using the R5500

One of the most powerful features of the R5500 is the ability to digitize and acquire IQ data using either the internal digitizer or an external one

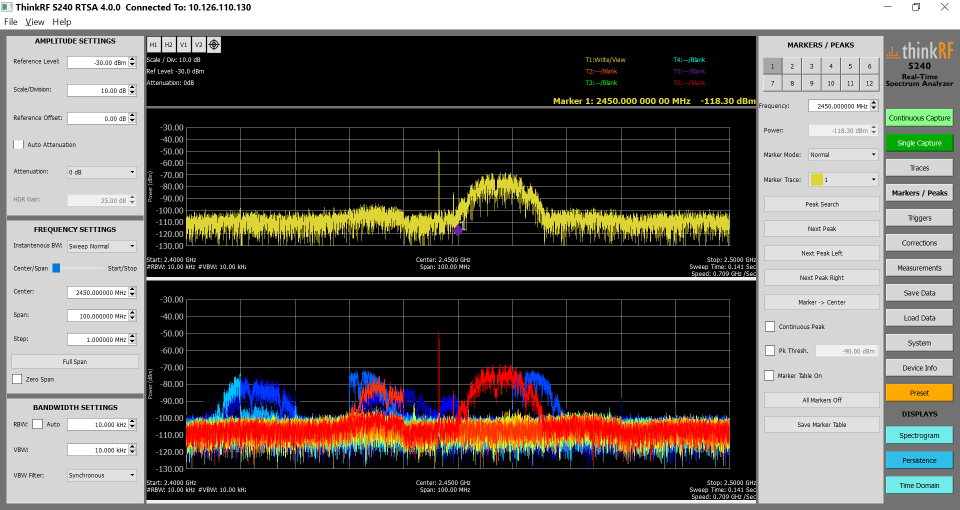

The ThinkRF S240 Real-Time Spectrum Analysis Software – Intuitive and Easy to Use Application

The ThinkRF S240 Real-Time Spectrum Analysis Software features a completely redesigned graphical user interface (GUI) from previous versions. Designed with the end-user in mind, the S240 keeps common setting such as Frequency, Bandwidth and Amplitude visible at all times, making it easy for the user to get the right view. All other settings and functions are available through an intuitive menu system that minimizes the number of clicks and the time it takes to find the right functions, while still keeping the view of the spectrum front and center. Customized settings can be saved and reloaded to simplify the setup of common applications and uses.

Seamlessly integrate with the R5500 Real-Time Spectrum Analyzer without any additional set up
Cost-effective analysis software that doesn’t sacrifice important functions or performance
Easy to use, intuitive software presented in a clean, professional package
Built-in software corrections for spur mitigation and IQ offset errors that could impact the accuracy of the data

The ThinkRF E300 Enabler for Keysight 89600 VSA – The Most Complete Third-Party Integration

The ThinkRF E300 Enabler allows the ThinkRF R5500 Real-Time Spectrum Analyzer to fully connect with leading Keysight 89600 VSA software. The combined solution provides an integrated and easy-to-use platform that supports over 75 modulation types, enables greater insight into captured signals, and allows for complete vector signal analysis for various research, deployment, and monitoring applications.

Low-cost, flexible, and remotely deployable, the R5500 analyzer with Keysight VSA allows users to reach deeper into signals in time, frequency, and modulation domains, and isolate unexpected interactions with unlimited markers and trace-to-trace marker coupling.

Advanced Vector Signal Analysis

Applicable at virtually any point within a wireless design, from simulation to production, and from baseband to RF
Analyze and display multiple signals at once
View multiple facets of complex signals simultaneously

Signal Measurement, Analysis and Troubleshooting

Supports more than 75 signal standards and modulation types including:
- Cellular LTE, W-CDMA, etc.
- WLAN 802.11ac/n/a/b/g, Bluetooth, Zigbee, RFID, etc.
- Modulation types AM, FM, PM, BPSK, QPSK, QAM, OFDM, etc.
For cellular, wireless-connectivity, aerospace, defense and general-purpose applications

High-Resolution FFT-Based Spectrum, Time and Modulation Domain Analysis
