Keysight Technologies provides a broad spectrum of oscilloscopes, from budget-friendly models to high-performance tools, suited for diverse applications. The entry-level 1000X Series is affordable yet powerful, with up to 200MHz bandwidth and 23 automatic measurements. For rugged, portable needs, the U1600 Series offers up to 200MHz. The 2000 and 3000 Series increase power and speed, capturing up to 1GHz with 1,000,000 waveforms per second. Higher-end models like the 4000 Series feature a 12.1-inch capacitive touch display and 1.5GHz bandwidth, while the 6000 Series reaches up to 6GHz with jitter and real-time eye-diagram analysis.
The Infiniium series is designed for advanced measurements, with the S-Series offering up to 8GHz bandwidth and a 10-bit ADC, and the V-Series reaching up to 33GHz. The Z-Series provides 63GHz bandwidth and minimal noise and jitter for precise real-time measurements. For optical communication, the Infiniium 86100D DCA-X goes beyond with 90GHz bandwidth. Additionally, the new Keysight HD3 oscilloscope adds enhanced clarity and resolution, ideal for intricate signal analysis. Every model reflects Keysight’s commitment to precision and innovation, equipping engineers with the tools to address their toughest measurement challenges.

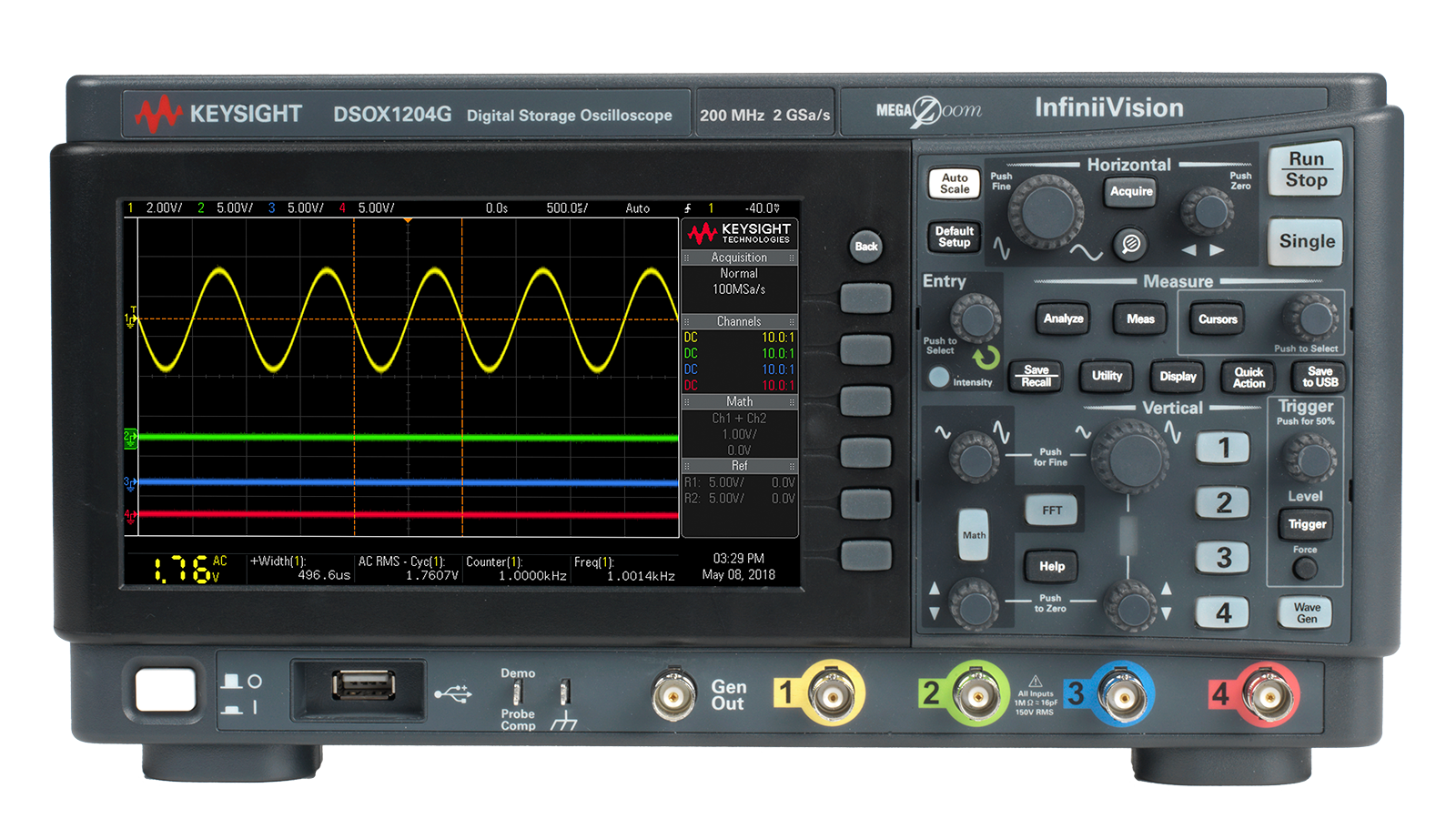

The InfiniiVision 1000 X-Series oscilloscopes are entry-level oscilloscopes with professional-level capabilities and connected software for remote control and data logging. It features 6-in-1 instrument integration and is part of the Keysight Smart Bench Essentials Series of four unique instruments that harness one powerful graphical interface.

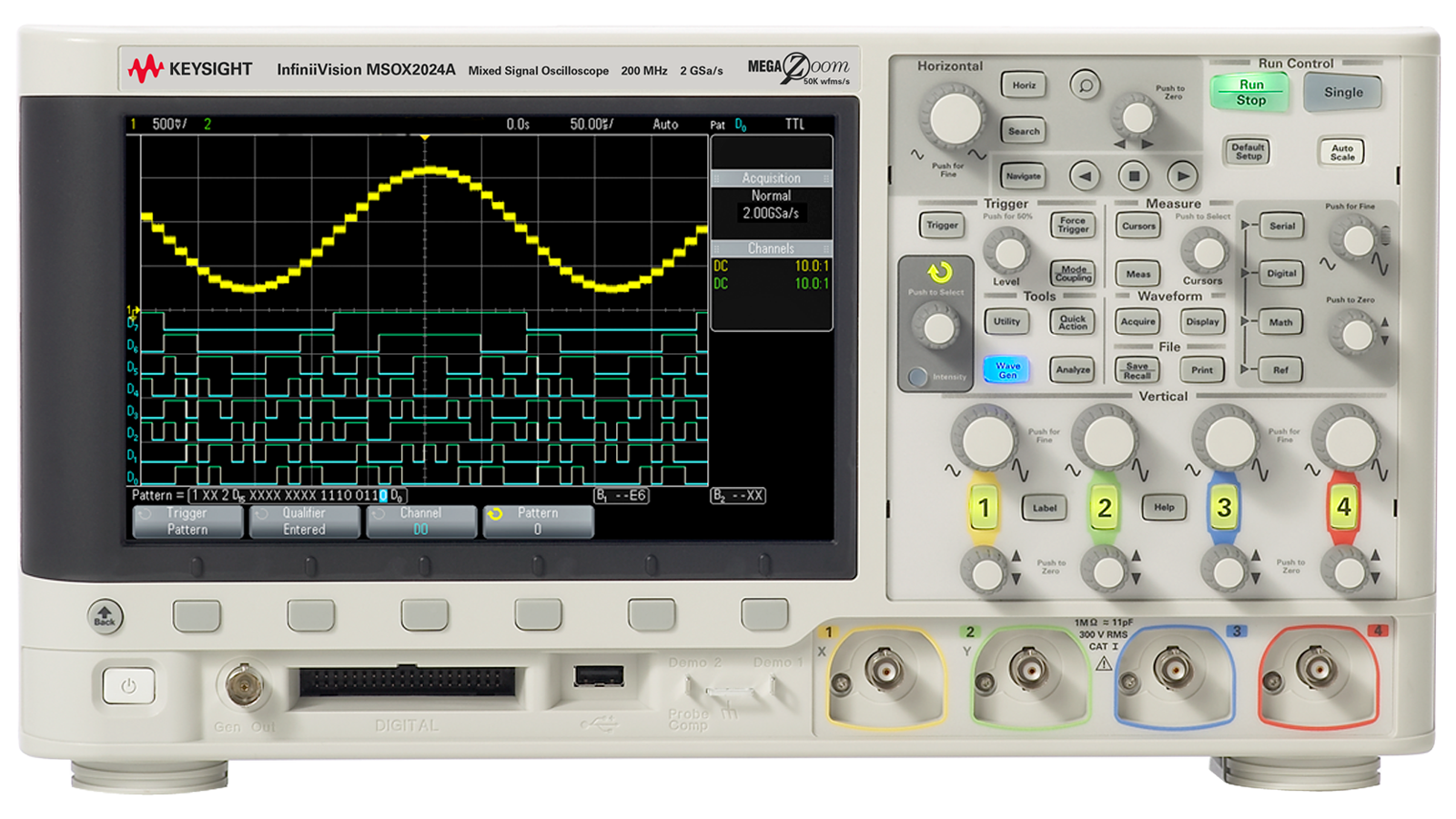

All the Basics, Plus Digital Channels. Sometimes you need a basic oscilloscope with a little more functionality — features like advanced waveform math, higher updates rates, or mixed signal capabilities. All of this is available in the InfiniiVision 2000 X-Series to enable you to perform deeper analysis in an entry-level oscilloscope.
The 3000G X-Series oscilloscopes 100 MHz to 1 GHz digital storage and mixed signal scopes. Standard zone triggering. 1,000,000 waveforms/sec update rate. Mixed domain analysis with time/frequency measurement correlation. 8 additional standard features including a built-in waveform generator, waveform and more.

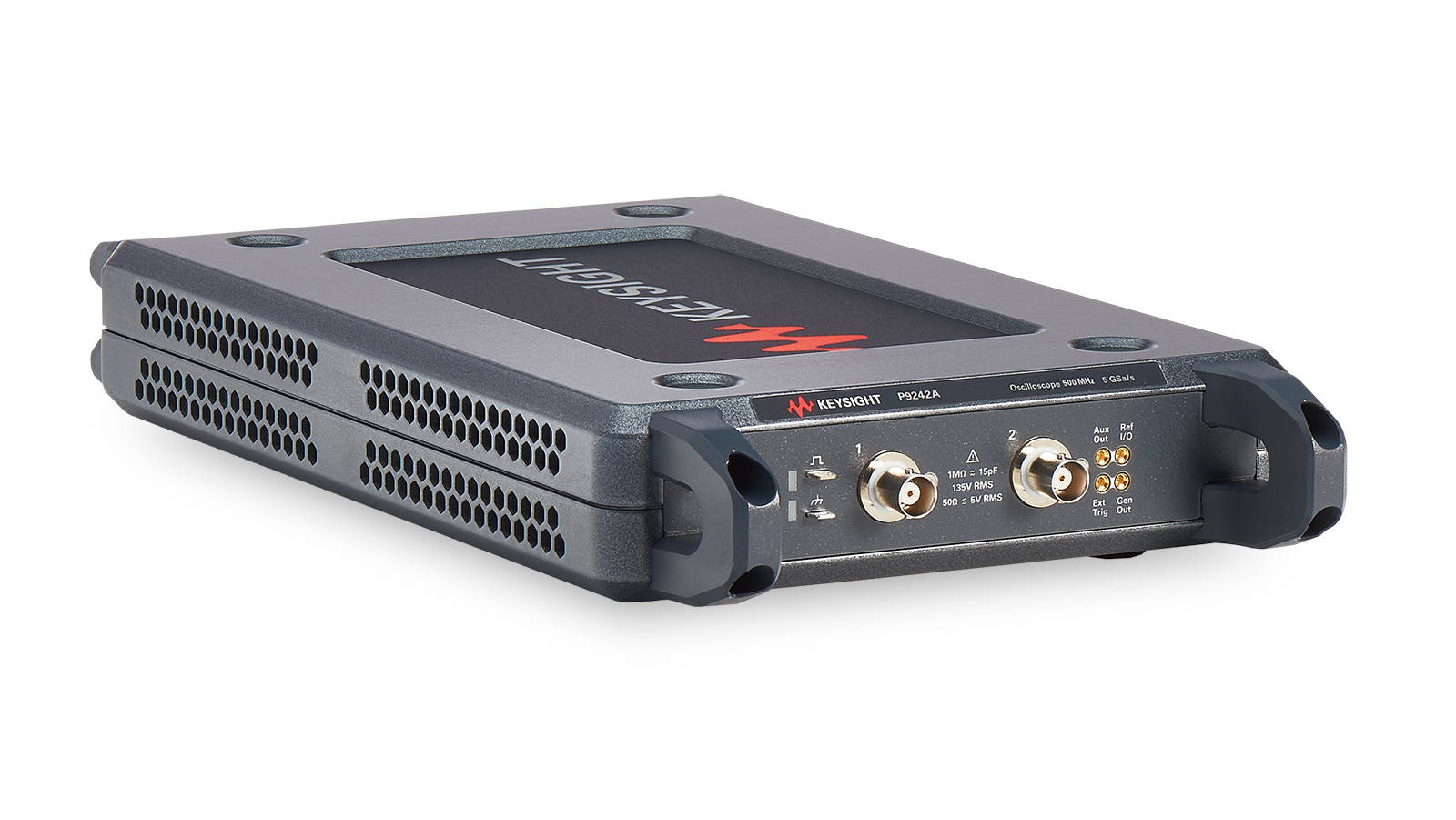

The Keysight Streamline Series P924xA USB oscilloscopes bring the InfiniiVision usability and performance to USB modular oscilloscopes. The Streamline Series provides maximum investment protection and is built with technology that leverages decades of Keysight’s high-performance oscilloscope expertise.

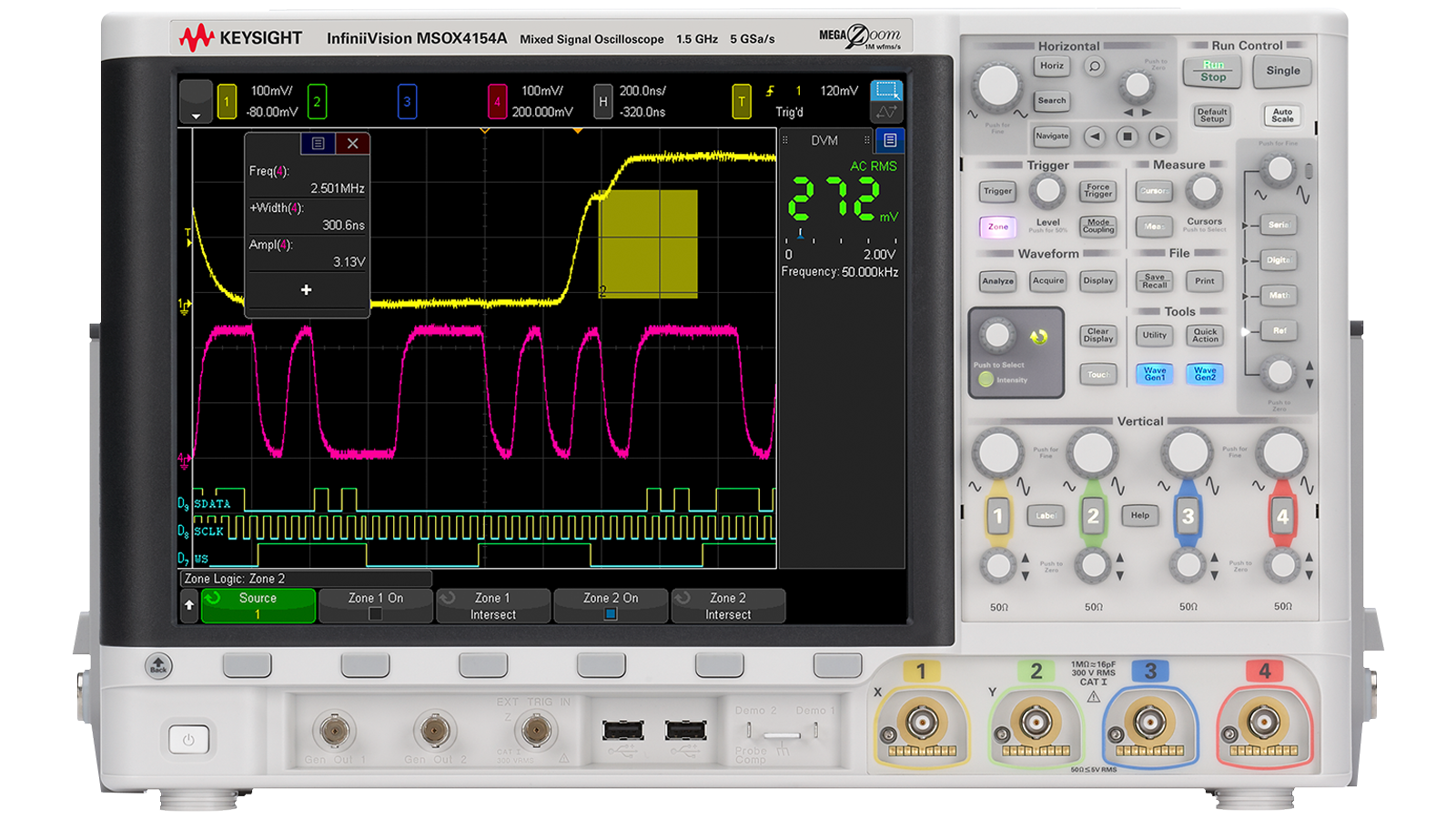

Keysight InfiniiVision 4000 X-Series oscilloscopes are engineered for next-generation performance to deliver waveform update rates 20 times faster than the competition. A large 12.1-inch capacitive touch screen combined with innovative hardware-based zone touch triggering means you can easily capture and view your signals. Have confidence you will catch even the rarest of glitches and see more with the 4000 X-Series.

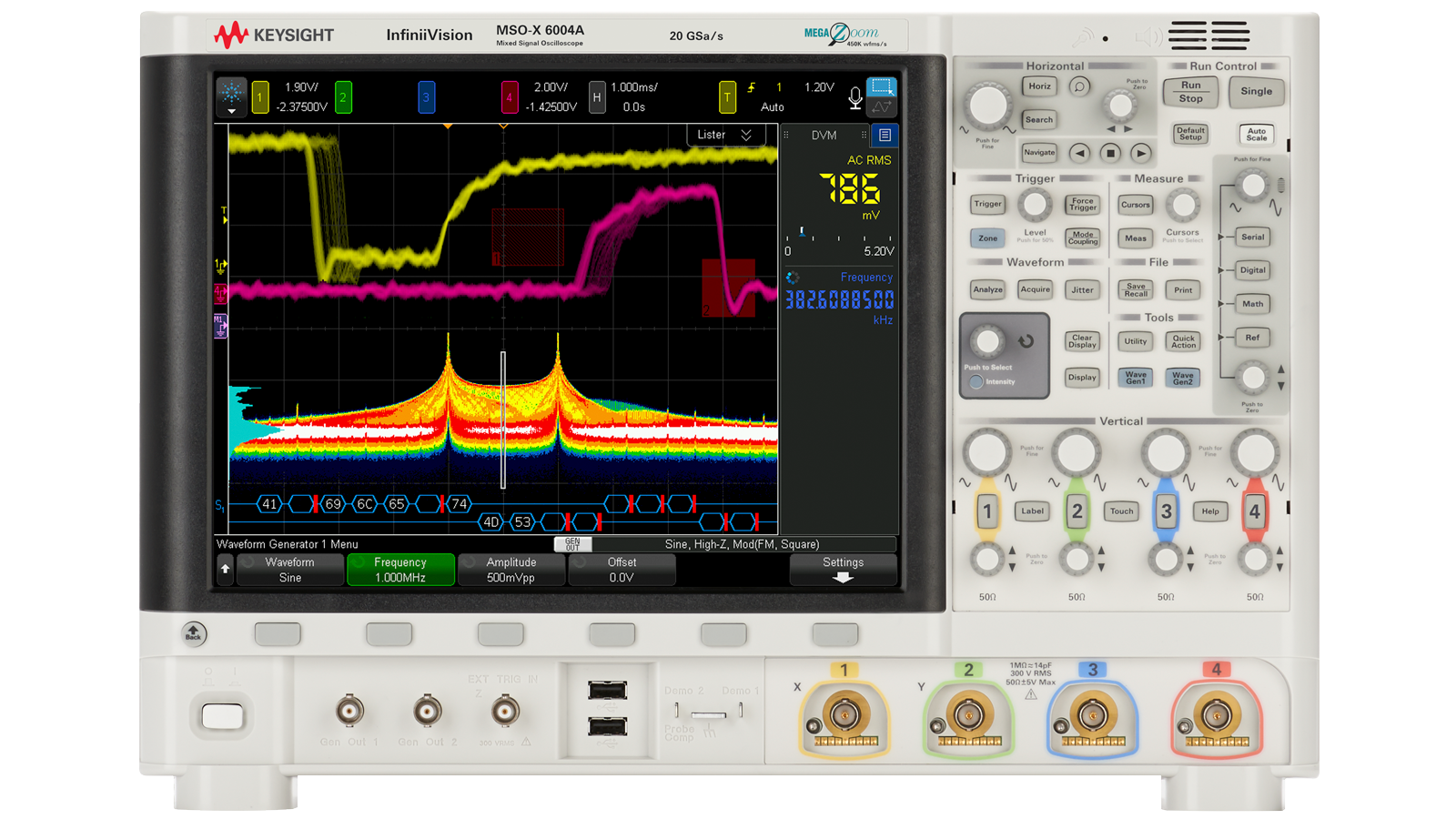

InfiniiVision 6000 X-Series digital oscilloscopes are the most advanced members of the InfiniiVision family. They enable you to more deeply analyze signals with capabilities such as histograms, jitter analysis, and eye diagrams. Unlike other oscilloscopes, using these advanced capabilities is easy. An intuitive touch user interface, voice control, and zone triggering make the most complex tasks simple.

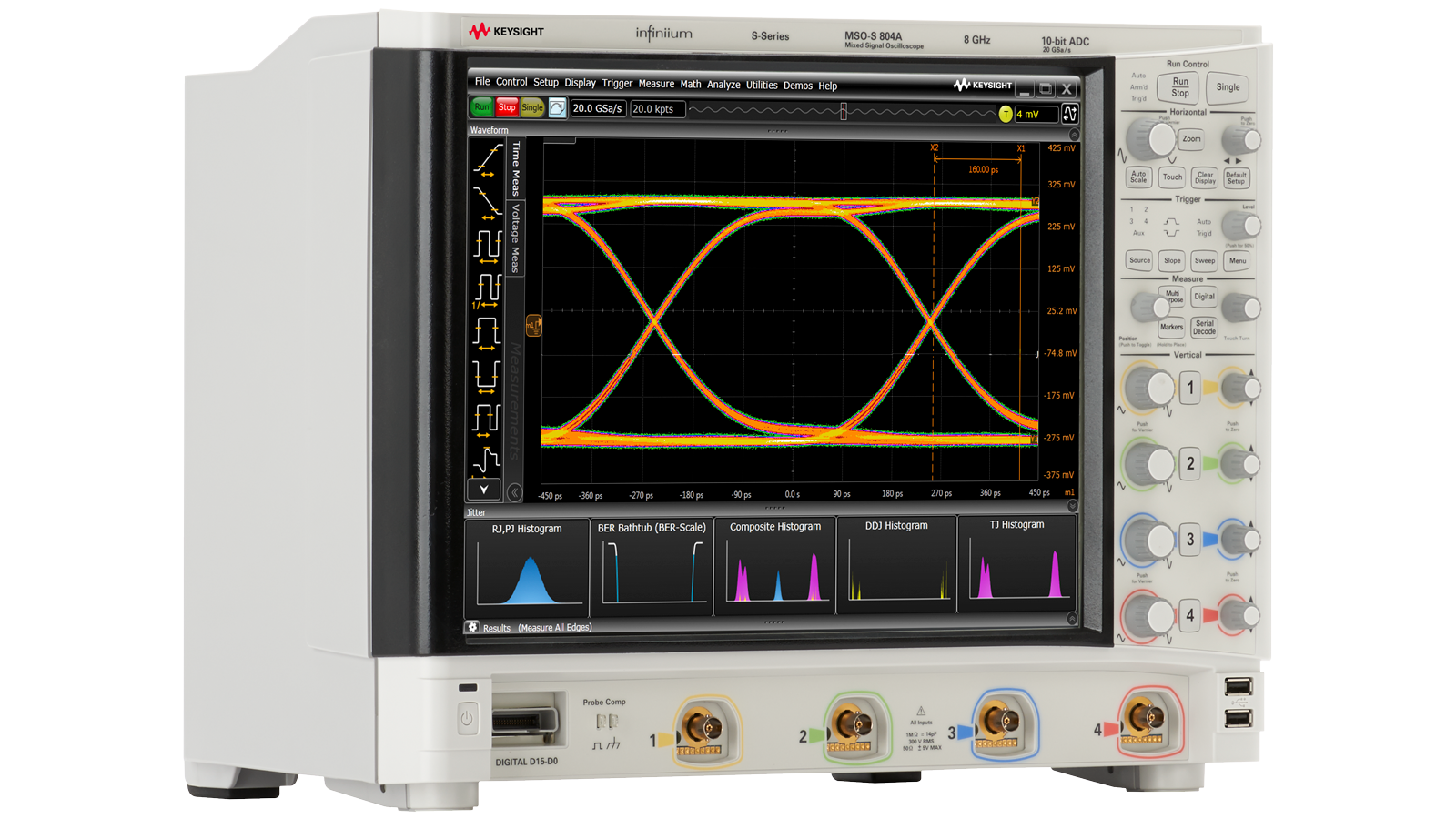

The S-Series provides superior time base, front-end, and ADC technology blocks. This gives you a platform with up to 16 bits of resolution, low noise, low jitter, and high effective number of bits (ENOB) — giving you visibility into the true performance of your device. Up to 8 GHz with up to 16 bits of resolution, low noise, low jitter, and high ENOB – giving you visibility into the true performance of your device.

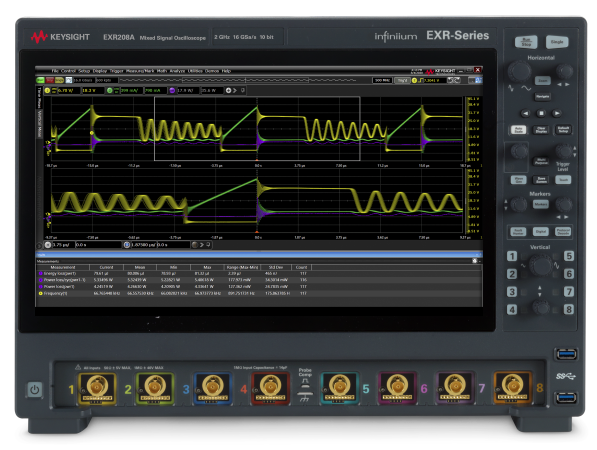

Infiniium EXR-Series Oscilloscopes are powerful, easy to own and intuitive to use.Bandwidths of up to 500 MHz to 6 GHz on all 4 or 8 analog channels. Powered by the same Keysight-designed ASICs used in the Infiniium UXR-Series. Capabilities extended with 7-in-1 instrument integration: oscilloscope, logic and protocol analyzers, DVM, counter, bode plotter, waveform generator
With the highest ADC and lowest front-end noise, the all-new InfiniiVision HD3 Series oscilloscopes offer the best precision in class. Leveraging hardware technology from the UXR Series, the HD3 Series boasts the most impressive resolution on the market with 4x the vertical accuracy and up to 10x less noise than the competition. Paired with our fast, uncompromised waveform update rate and 25x more memory than our current InfiniiVision scopes, the HD3 Series is truly set apart from other oscilloscopes in this class.
This powerful all-new custom hardware combined with new advanced functions in the user interface enables the most dynamic and accurate testing system.
